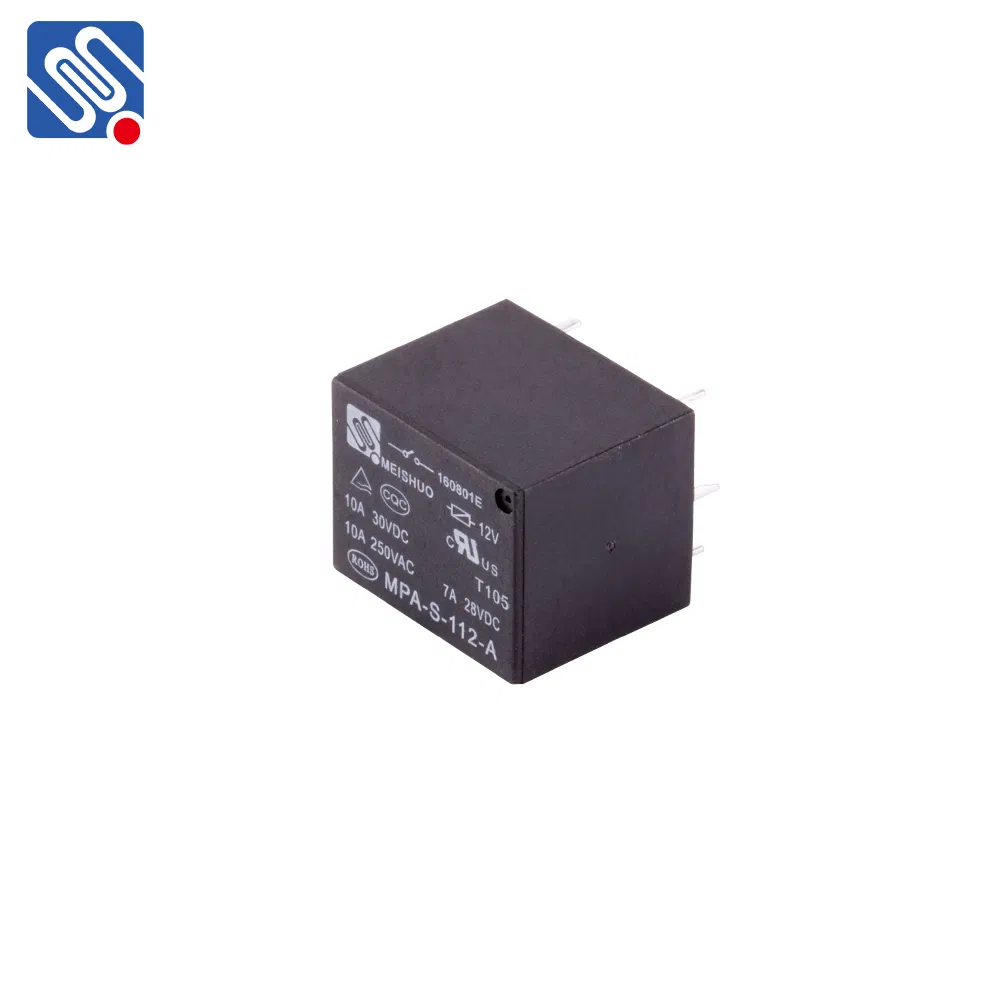

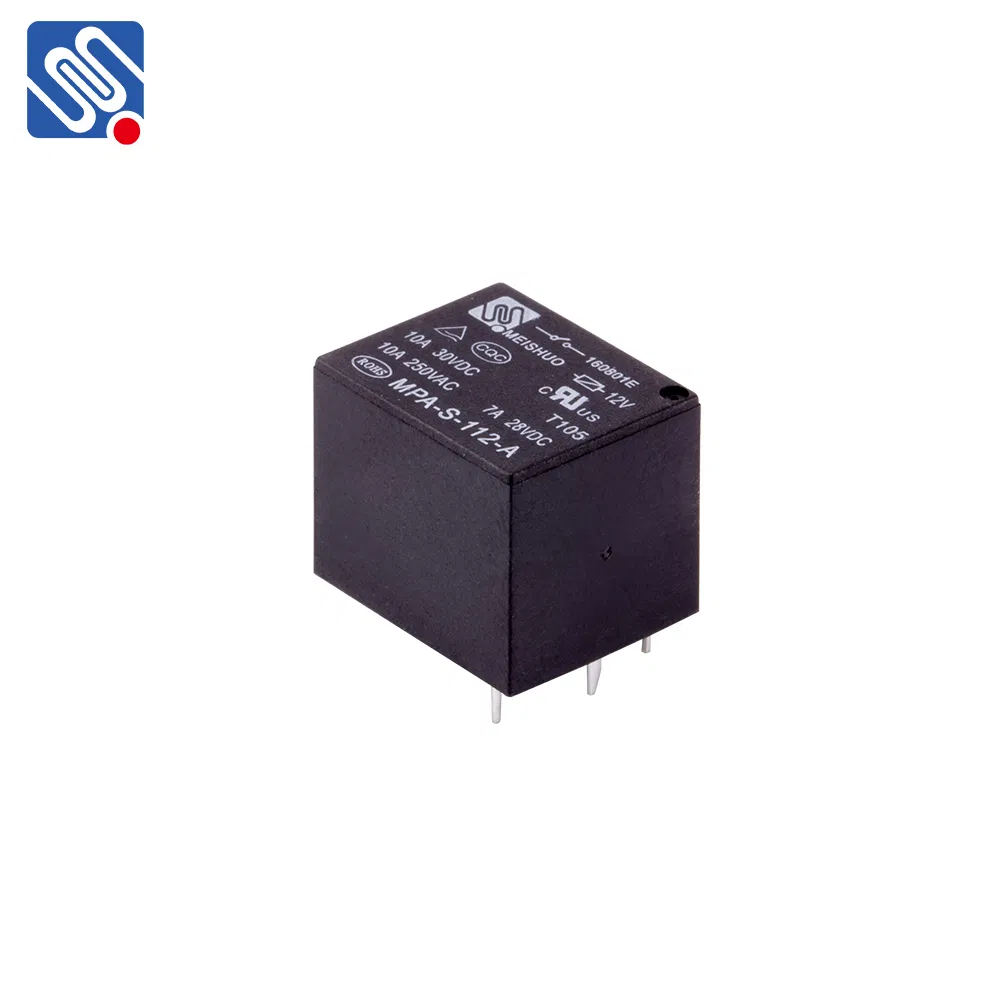

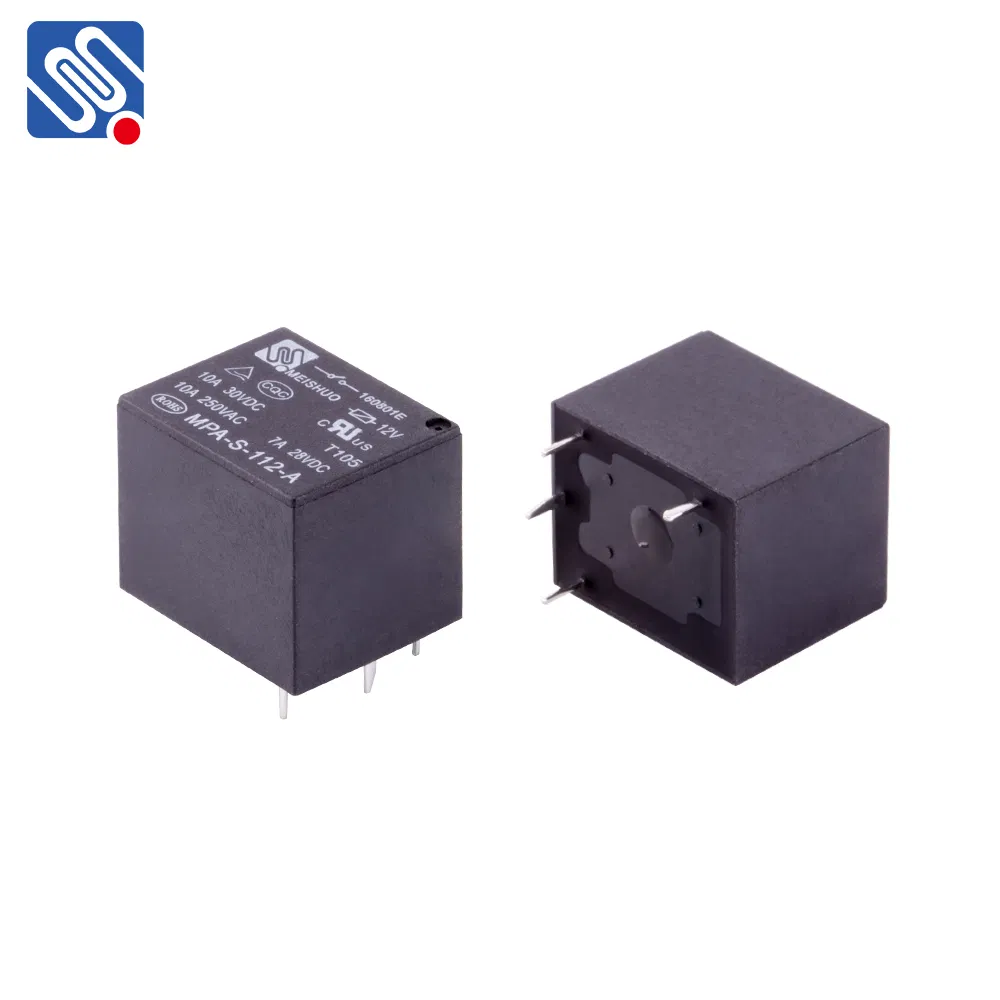

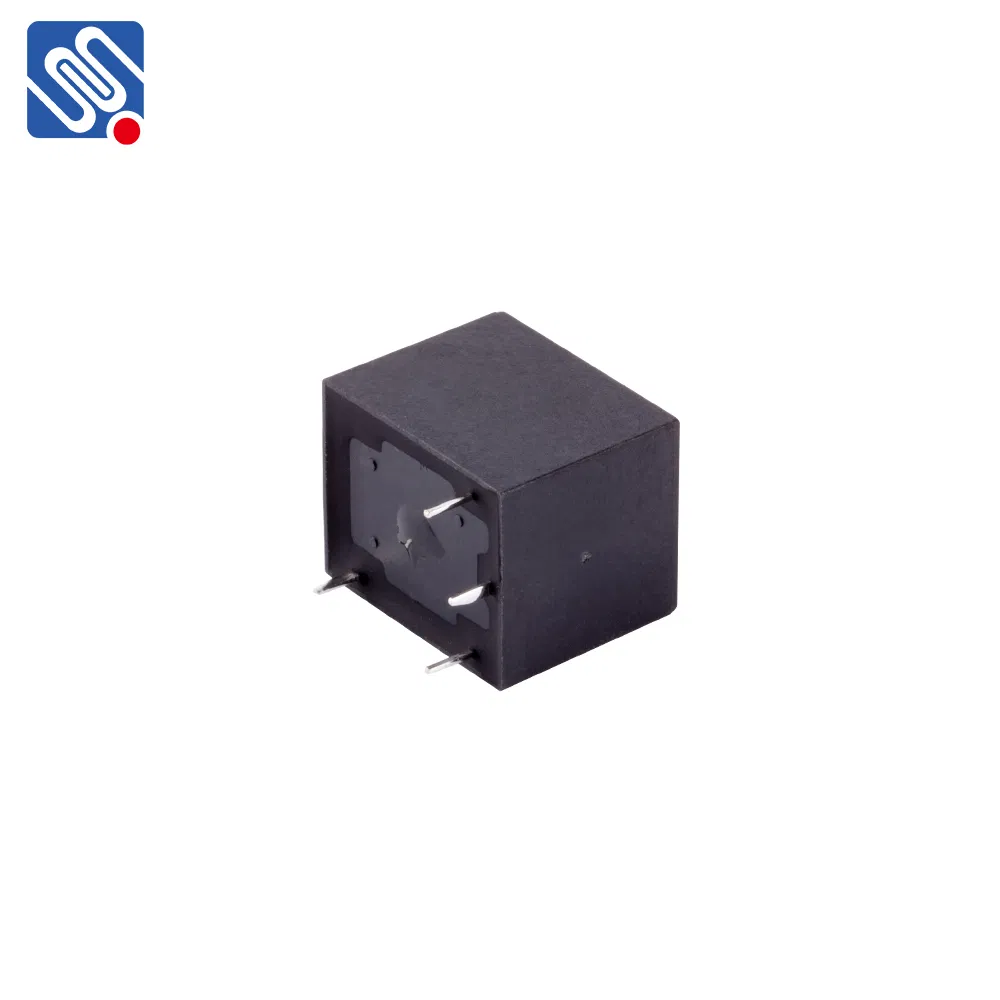

Meishuo MPa-S-112-a Micro Rele Small Relay 12V 10A Mini Hf3FF Relay 4pin Rele

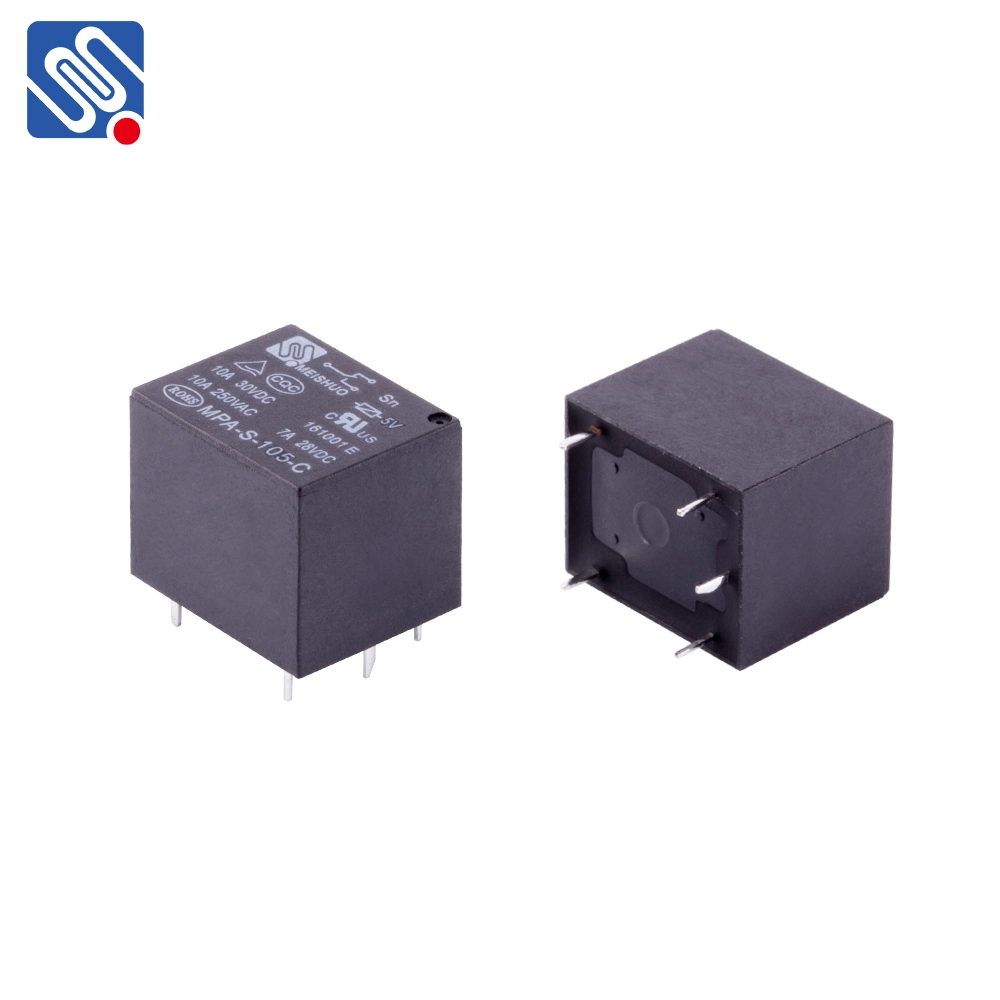

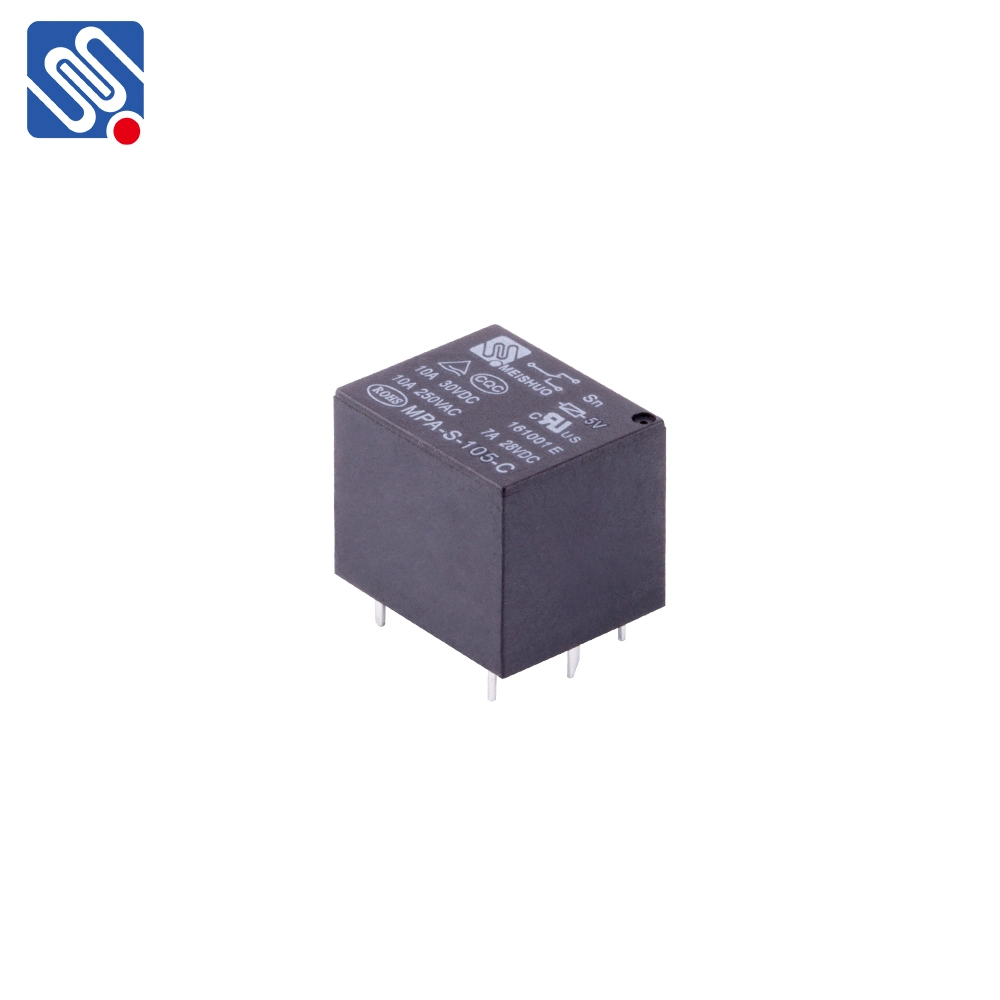

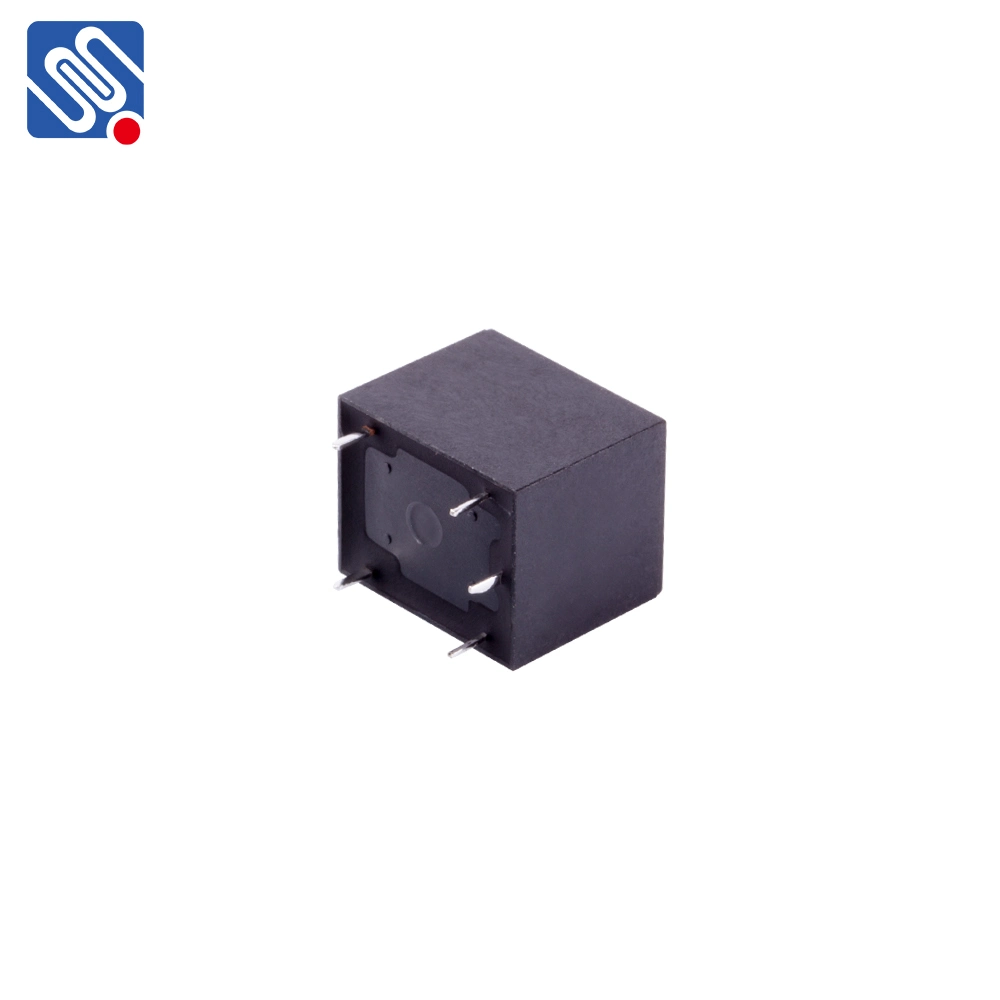

Meishuo MPa-S-112-a Micro Rele Small Relay 12V 10A Mini Hf3FF Relay 4pin ReleProduct Description---- MPA15A Switching capability1 form A , 1form B , 1 form C configurationSubminiature, standard PCB LayoutOutline dimensions: 18.7*15.0*15.2mmSPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR Contact Param......
Send Inquiry
Product Description
Product Description
---- MPA
15A Switching capability
1 form A , 1form B , 1 form C configuration
Subminiature, standard PCB Layout
Outline dimensions: 18.7*15.0*15.2mm
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR | ||||||
Contact Parameters | Rated Road | 10A 250VAC/30VDC | ||||
Max. Switching Current | 10A | |||||
Max. Switching Voltage | 250VAC/30VDC | |||||
Function Parameters | Operate time | <10ms | ||||
Release Time | <5ms | |||||
Vibration | 10Hz~55Hz 1.5mm ( D A ) | |||||
Certificate / Rating | UL | 10A 250VAC/ 7A 28VDC 15A 125VAC 15A 240VAC 5A 250VAC TV-5 | ||||
TUV | 10A 250VAC 30VDC 5A 250VAC | |||||
CQC | 10A 250VAC/30VDC 5A 250VAC/30VDC 15A 125VAC | |||||

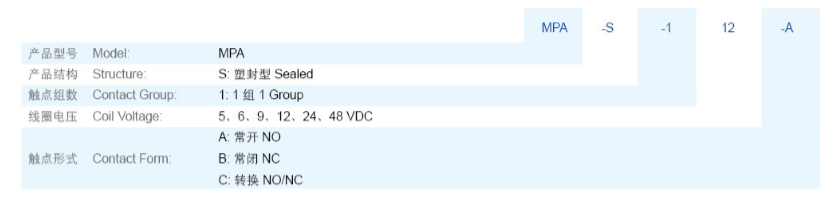

Ordering Information

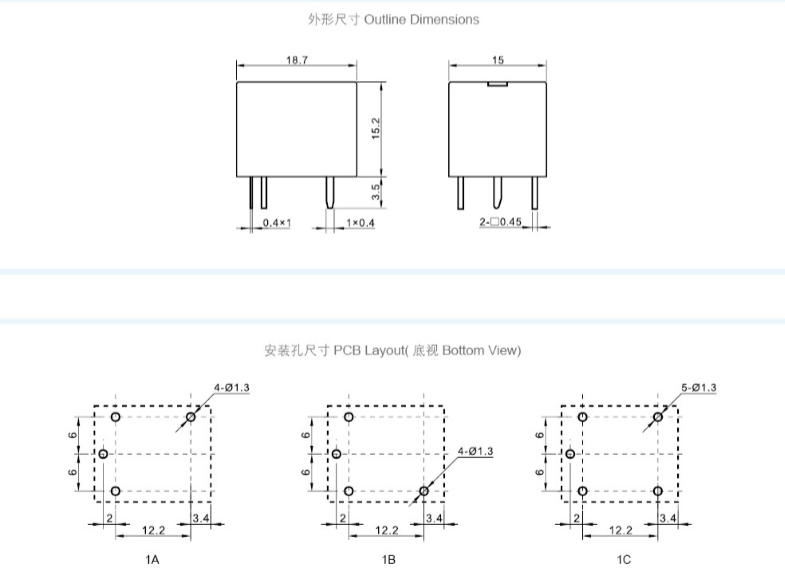

Outline Dimensions
Hot Selling Type1:

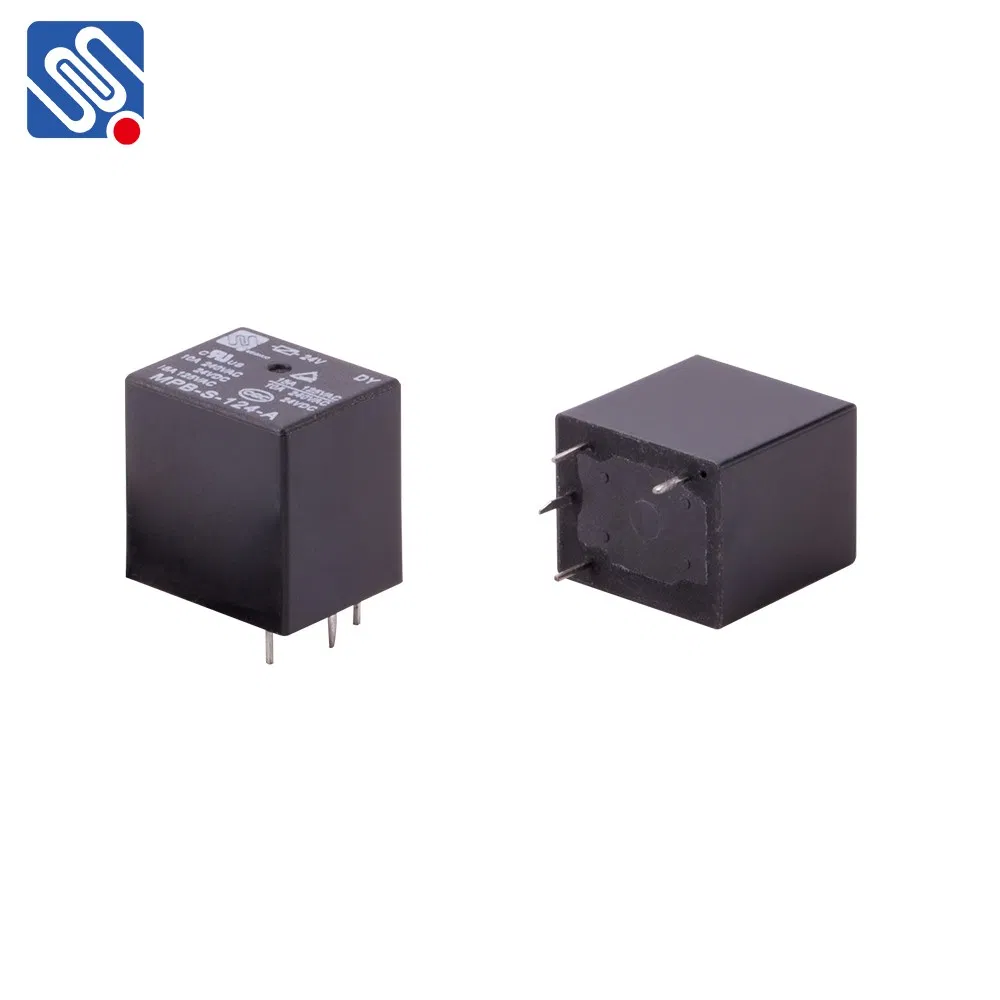

Name: MPB-S-124- A
Brand: Meishuo
Original: China
UL: 10A 240VAC/24VDC ; 15A 125VAC
TUV: 10A 240VAC/24VDC
CQC: 10A 240VAC /24VDC ; 15A 125VAC
Hot selling Type 2:

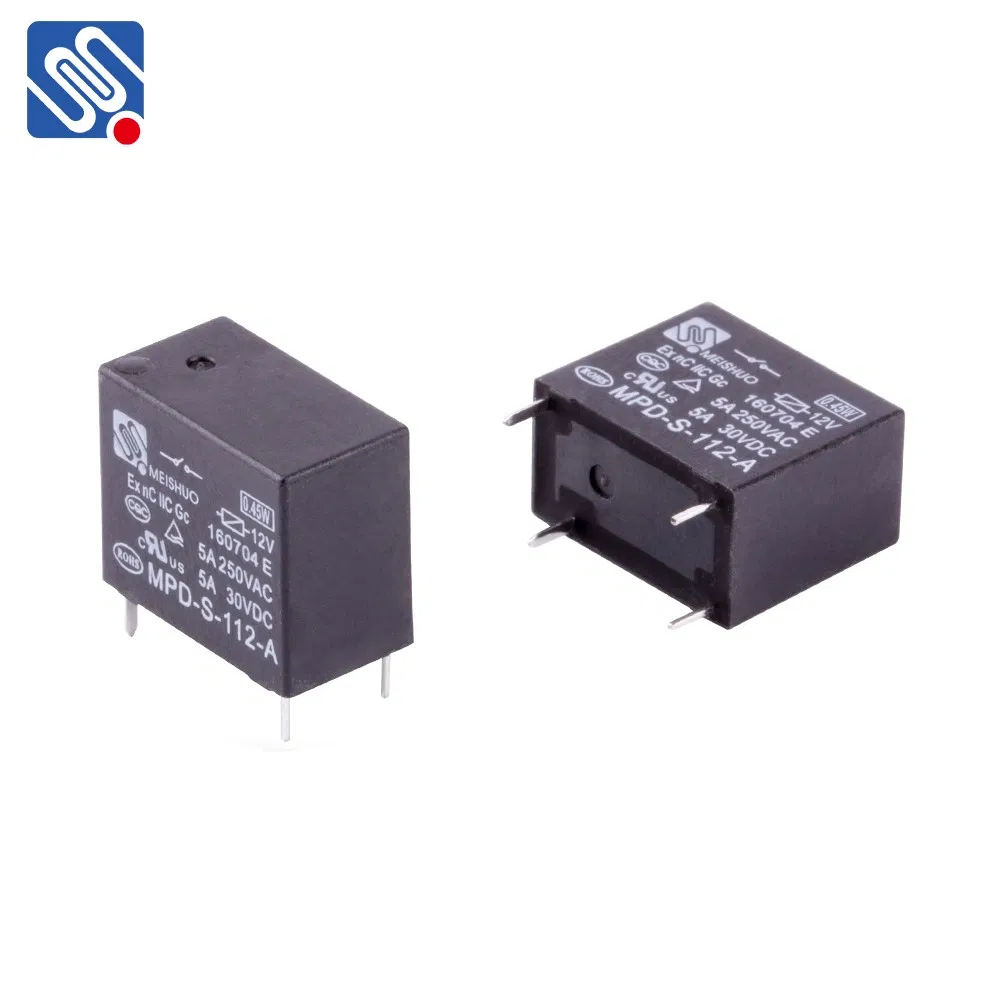

Name: MPD-S-112-A
Brand: Meishuo
Original: China
UL: 10A 250VAC/30VDC ; 5A 250V/30VDC; 10A 125VAC/30VDC
TUV: 10A 250VAC/30VDC; 5A 250VAC/30VDC
CQC: 10A 250VAC 30VDC; 5A 250VAC /30VAC

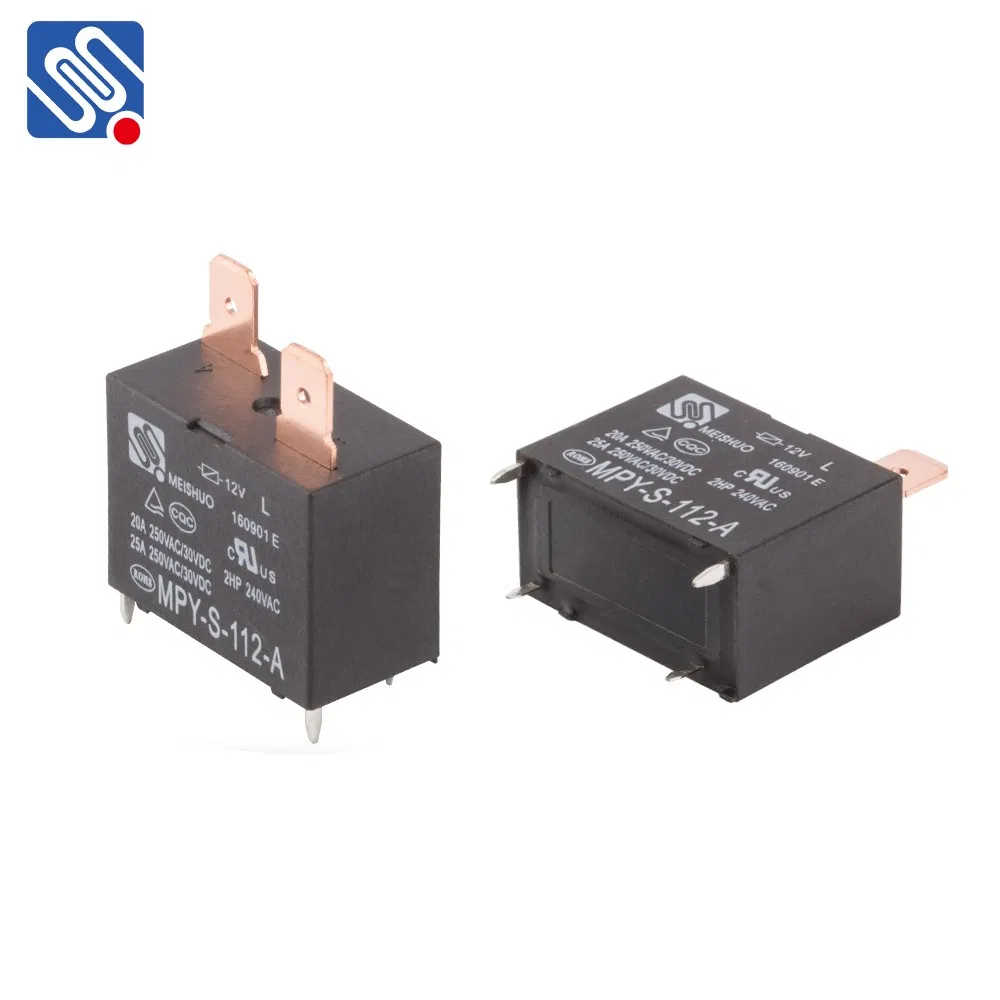

Hot selling Type 3:
Name: MPY-S-112-A
Brand: Meishuo
Original: China
UL: 20A 250VAC/30VDC ;
2HP 277VAC
TUV: 25A 250VAC/30VDC;
20A 250VAC/30VDC
CQC: 25A 250VAC 30VDC;
20A 250VAC /30VAC;
16A 250VAC/30VDC
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
