2p 16A 220V/230V 50/60Hz DIN Rail Household AC Modular Contactor 2no 2nc
2P 16A 220V/230V 50/60HZ Din rail Household ac Modular contactor 2NO 2NC BCH8 series of AC contactors (hereinafter referred to as contactors) are control appliances for long distance switching and breaking of senseless or low-sensing loads, resistance furnaces, household appliances and simila......
Send Inquiry
Product Description

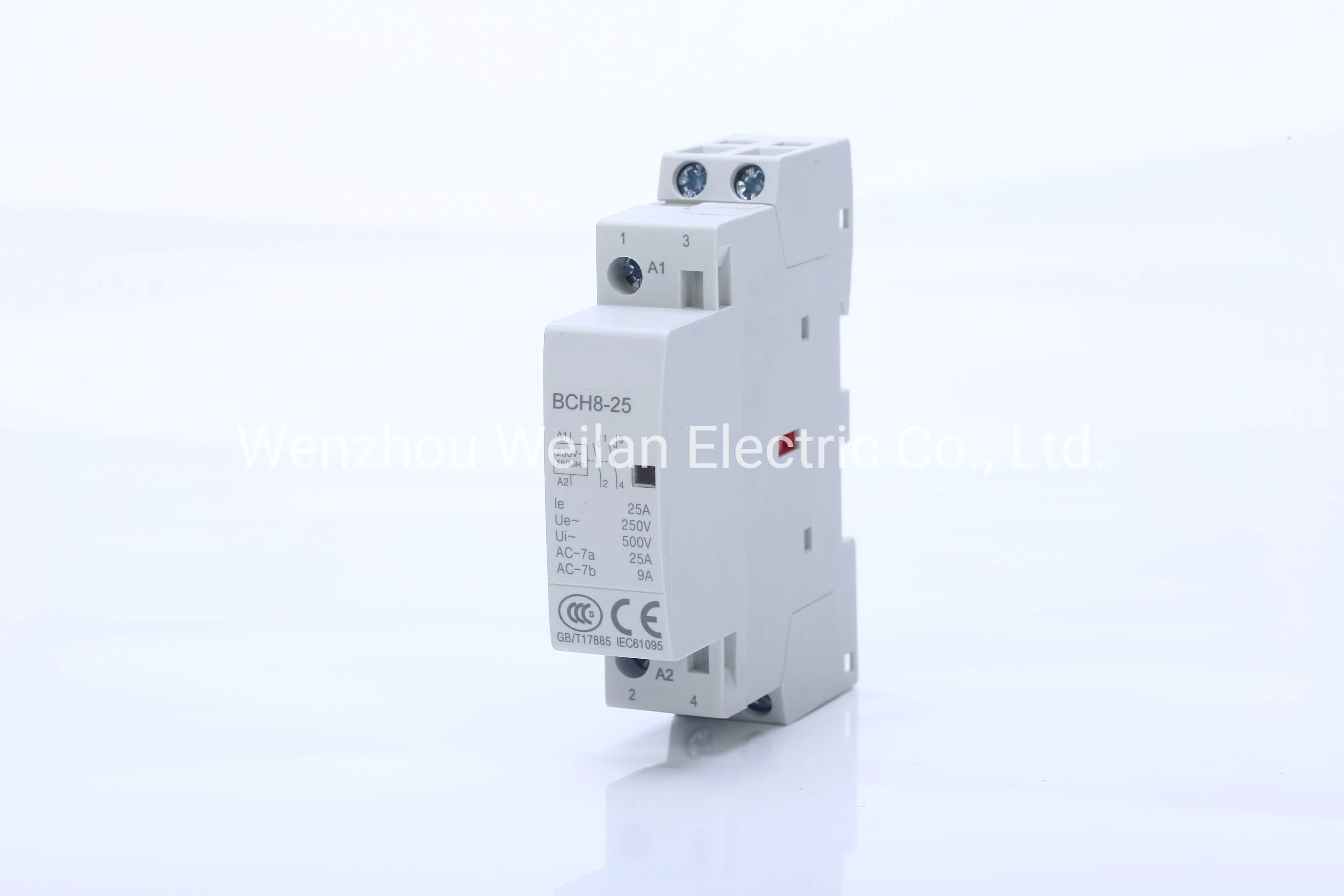

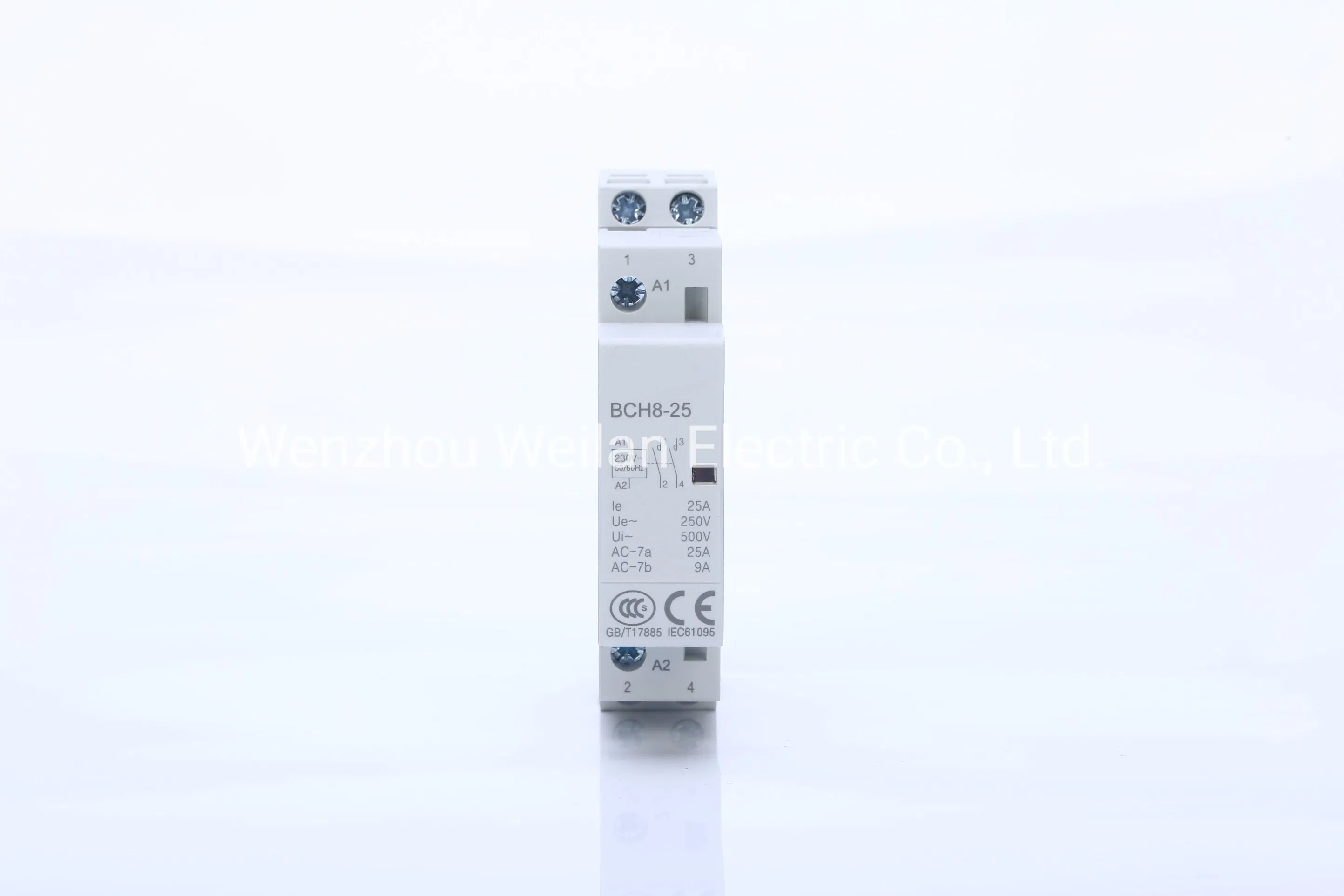

BCH8 series of AC contactors (hereinafter referred to as contactors) are control appliances for long distance switching and breaking of senseless or low-sensing loads, resistance furnaces, household appliances and similar uses of low-sensing loads, household motors, etc.
The contactor is mainly suitable for AC 50 Hz/60Hz, rated working voltage to 400 V, rated working current to 100 A power system, under the use category of AC-1,AC-7a( no sense or low sense load, resistance furnace, household appliances and similar use low sense load), for long distance switch and control circuit.

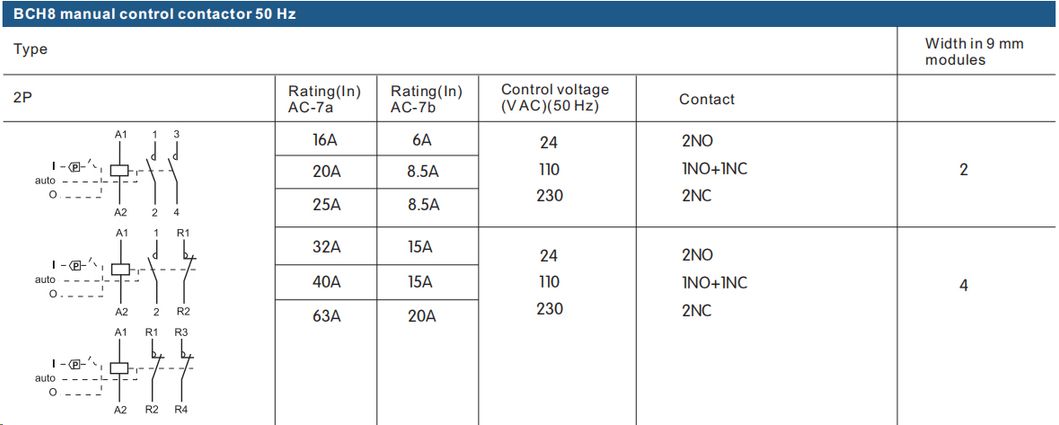

Catalogue numbers
Packaging & Delivery
Carton Packing: 120PCS/CTN, 10 BOX/CTN, 12PCS/BOX ,
Carton size:50*26*19cm G.W:21.20KGS, N.W.:19.60KGS
Lead Time :
| Quantity(Pieces) | 1 - 1000 | >1000 |
| Est. Time(days) | 7 | To be negotiated |
FAQ :
Q1: Can I print my logo on the products?
A: Yes, OEM available. ( MOQ : 200 Pieces )
Q2: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q3: How about delivery time of the order?
A: 3-5 days after getting deposit. ( We have stock )
Any requirements or question,welcome to "Send" us an e-mail Now!!!
