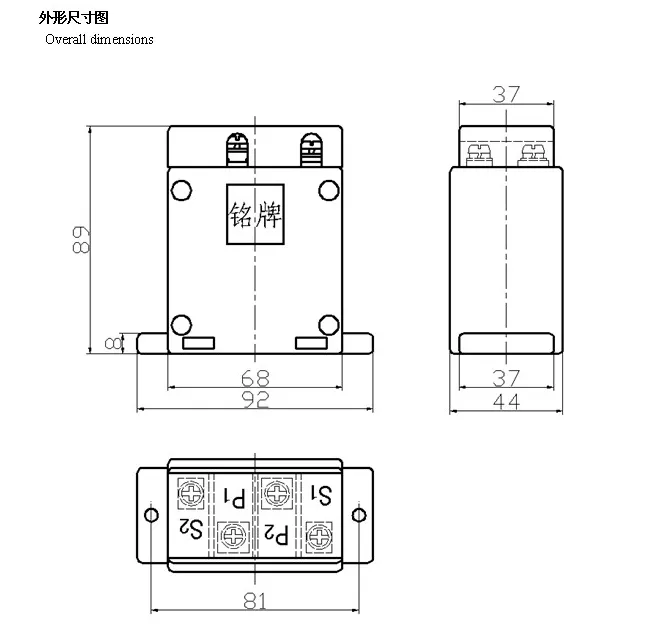

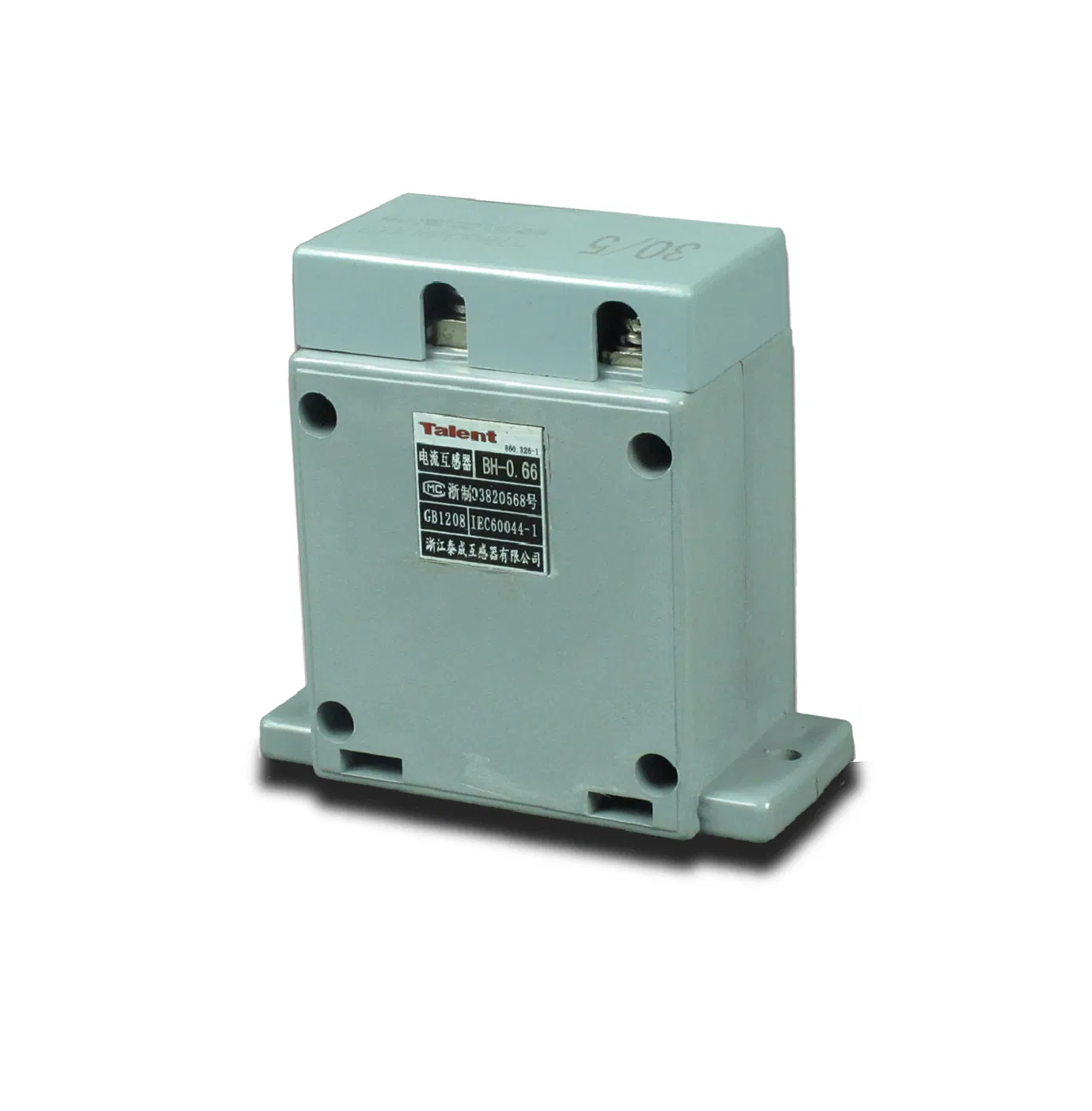

AG10-0.66 Indoor 0.2s 5VA Current Transformer with Bus Bar
AG10-0.66 Current transformersTECHNICAL DATAThe products accord with the standards of IEC60044-1:2003 and some special demands.Rated voltage 0.66KVRated frequency 50HZAmbient temperature -5 ºC - +55ºCRated primary currentRated secondary currentAccuracy classes Rated output(vA)5,10,......
Send Inquiry
Product Description
AG10-0.66 Current transformers
TECHNICAL DATA
The products accord with the standards of IEC60044-1:2003 and some special demands.
Rated voltage 0.66KV
Rated frequency 50HZ
Ambient temperature -5 ºC - +55ºC
Note: If user's data go beyond the above mentioned scopes, they maybe subject to an agreement between manufacturer and purchaser.
TECHNICAL DATA
The products accord with the standards of IEC60044-1:2003 and some special demands.
Rated voltage 0.66KV
Rated frequency 50HZ
Ambient temperature -5 ºC - +55ºC
| Rated primary current | Rated secondary current | Accuracy classes | Rated output(vA) |
| 5,10,15,20,30,40,50,75 | 5,1 | 0.2,0.2s,0.5,0.5s | 5,10 |
