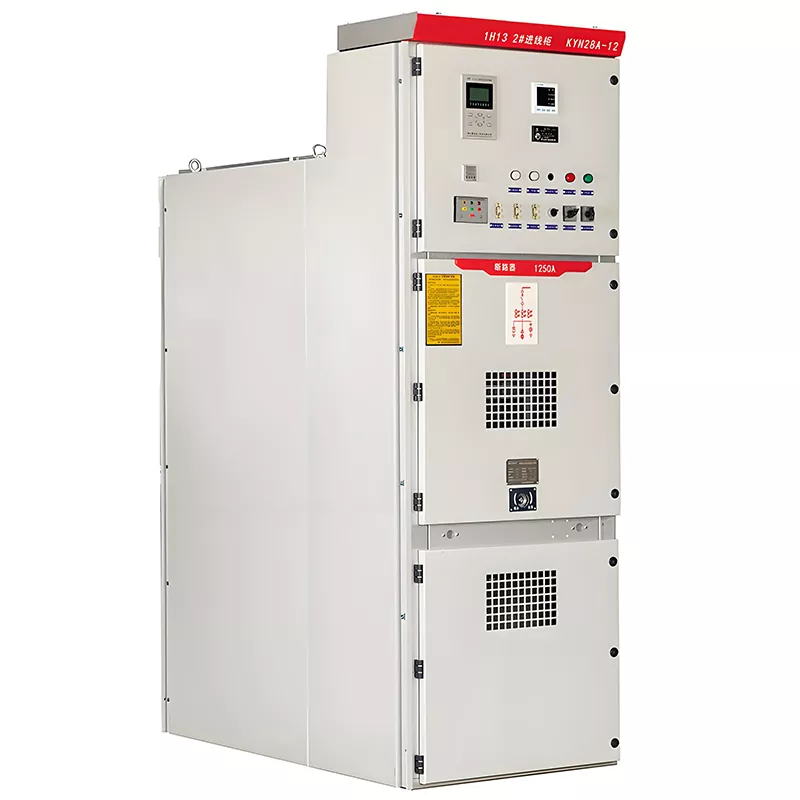

Why Is an 11kV Medium Voltage Indoor VCB Switchgear Panel Essential for Reliable Power Distribution?

An 11kV Medium Voltage Indoor VCB Switchgear Panel plays a vital role in modern electrical distribution systems, providing reliable switching, circuit protection, and operational control for medium-voltage power networks. Designed for indoor installation, this equipment is widely used in industrial plants, commercial buildings, substations, infrastructure projects, and power distribution facilities. By integrating vacuum circuit breakers with protective and control components, it helps operators manage electrical loads, isolate faults, and maintain a stable power supply.

For businesses seeking improved electrical safety and operational efficiency, selecting the right switchgear panel is an important investment. Wenzhou Huajidian Technology Co. Ltd. provides electrical equipment solutions designed to meet different power distribution requirements, helping customers identify suitable configurations for their applications.

What Makes an 11kV Medium Voltage Indoor VCB Switchgear Panel Different?

An indoor VCB switchgear panel is designed to control and protect electrical circuits operating at a nominal voltage of 11kV. VCB stands for vacuum circuit breaker, a switching device that uses a vacuum interrupter to extinguish the electrical arc generated when interrupting current.

Compared with some traditional circuit-breaking technologies, vacuum circuit breakers offer several advantages, including compact construction, relatively low maintenance requirements, and reliable switching performance.

Key components commonly include:

• Vacuum Circuit Breaker: Interrupts normal load current and fault current within its rated breaking capacity.

• Protection Relay: Detects abnormal electrical conditions and initiates tripping when configured protection thresholds are exceeded.

• Busbar System: Distributes electrical power between connected circuits.

• Current and Voltage Transformers: Provide measurement signals for metering and protection.

• Earthing Switch: Supports safe grounding procedures during maintenance when used according to the equipment's interlocking and operating instructions.

• Control and Indication Components: Help operators monitor equipment status and execute switching operations.

The exact configuration depends on the panel design, protection scheme, rated current, short-circuit requirements, and project specifications.

Why Is This Switchgear Important for Power Distribution?

1. Improving Electrical Safety

Electrical faults, including short circuits and overloads, can damage equipment, interrupt production, and create serious safety hazards. An appropriately rated 11kV Medium Voltage Indoor VCB Switchgear Panel helps reduce these risks by providing controlled switching and coordinated protective functions.

When a fault occurs, the protection relay identifies the abnormal condition and sends a trip command to the circuit breaker. The breaker then interrupts the current within its specified operating capability, helping limit damage to the affected circuit.

Safety performance also depends on correct installation, suitable protection settings, effective grounding, and compliance with applicable electrical standards.

2. Supporting a Stable Power Supply

Unexpected electrical interruptions can affect manufacturing lines, building services, and essential infrastructure. Reliable switchgear helps operators isolate faulty sections while allowing unaffected parts of the distribution network to continue operating where the system design permits.

This selective isolation capability can reduce the scope of an outage and simplify troubleshooting. For facilities with demanding power requirements, it is an important factor in maintaining continuity of operations.

3. Reducing Maintenance Demands

Vacuum circuit breakers use sealed vacuum interrupters to extinguish switching arcs. Because this technology avoids the routine handling of arc-extinguishing oil or SF6 gas within the vacuum interrupter itself, it can simplify certain maintenance activities.

However, the complete switchgear assembly still requires periodic inspection of mechanical mechanisms, electrical connections, insulation condition, interlocks, relays, and auxiliary circuits. Following the manufacturer's maintenance schedule helps preserve dependable performance throughout the equipment's service life.

4. Enhancing Operational Efficiency

Modern indoor switchgear can incorporate electrical metering, protection relays, status indicators, and remote monitoring interfaces. Depending on the selected configuration, these functions help operators identify operating conditions, analyze faults, and manage electrical distribution more efficiently.

For industrial facilities, improved visibility into electrical system status can support maintenance planning and reduce unnecessary troubleshooting time.

Which Applications Benefit Most from 11kV Indoor VCB Switchgear?

An 11kV Medium Voltage Indoor VCB Switchgear Panel is suitable for many facilities that require controlled medium-voltage power distribution.

Actual suitability depends on the network design, environmental conditions, fault levels, and applicable electrical requirements.

How Can You Choose the Right 11kV Switchgear Panel?

Choosing suitable switchgear requires more than confirming the nominal voltage. Buyers should evaluate the complete electrical specification and the conditions in which the equipment will operate.

Important selection factors include:

• Rated Voltage: Confirm compatibility with the system's nominal voltage and maximum operating voltage.

• Rated Current: Ensure the breaker, busbars, and associated components can carry the expected continuous current.

• Short-Circuit Breaking Capacity: Select equipment capable of interrupting the prospective fault current at the installation point.

• Insulation Level: Verify that the specified power-frequency withstand voltage and lightning impulse withstand voltage meet project requirements.

• Installation Environment: Consider indoor temperature, humidity, altitude, pollution, and ventilation conditions.

• Protection and Control: Determine whether the project requires overcurrent, earth-fault, metering, communication, or remote-control functions.

• Applicable Standards: Confirm compliance with relevant standards, such as IEC 62271-200 for AC metal-enclosed switchgear and controlgear, where applicable.

• Maintenance Accessibility: Evaluate interlocks, component access, spare parts, and the availability of technical support.

Providing a detailed technical specification before purchasing can help prevent configuration mismatches and unnecessary project costs.

What Advantages Should Buyers Look for in a Switchgear Supplier?

A dependable supplier should offer more than a product quotation. Technical compatibility, manufacturing consistency, documentation, and after-sales support are all important considerations.

Wenzhou Huajidian Technology Co. Ltd. can be considered when evaluating solutions for medium-voltage electrical distribution projects. Buyers should confirm the supplier's available panel configurations, applicable certifications, testing documentation, customization capabilities, and delivery arrangements before placing an order.

A professional procurement process should also clarify the following details:

1. Whether the panel configuration matches the project's single-line electrical diagram.

2. Whether rated current and short-circuit parameters meet the system requirements.

3. Whether protection relays and communication functions are compatible with existing equipment.

4. Whether factory inspection and routine test reports are available.

5. Whether installation guidance, operating documentation, and spare parts can be provided.

These checks help buyers make informed decisions and establish a clearer basis for long-term equipment management.

Conclusion

An 11kV Medium Voltage Indoor VCB Switchgear Panel is an essential component in medium-voltage distribution systems, combining circuit switching, fault protection, and operational control in an indoor installation. Its benefits include improved electrical safety, dependable switching performance, easier fault isolation, and support for efficient maintenance.

Selecting the right panel requires careful consideration of electrical ratings, protection functions, installation conditions, and applicable standards. Working with a qualified supplier can help ensure that the selected equipment aligns with the project's technical and operational requirements.

If you are planning a medium-voltage distribution project or need assistance selecting a suitable switchgear configuration, contact us at Wenzhou Huajidian Technology Co. Ltd. to discuss your application, technical specifications, and purchasing requirements. Our team can help you evaluate suitable solutions for your power distribution needs.
