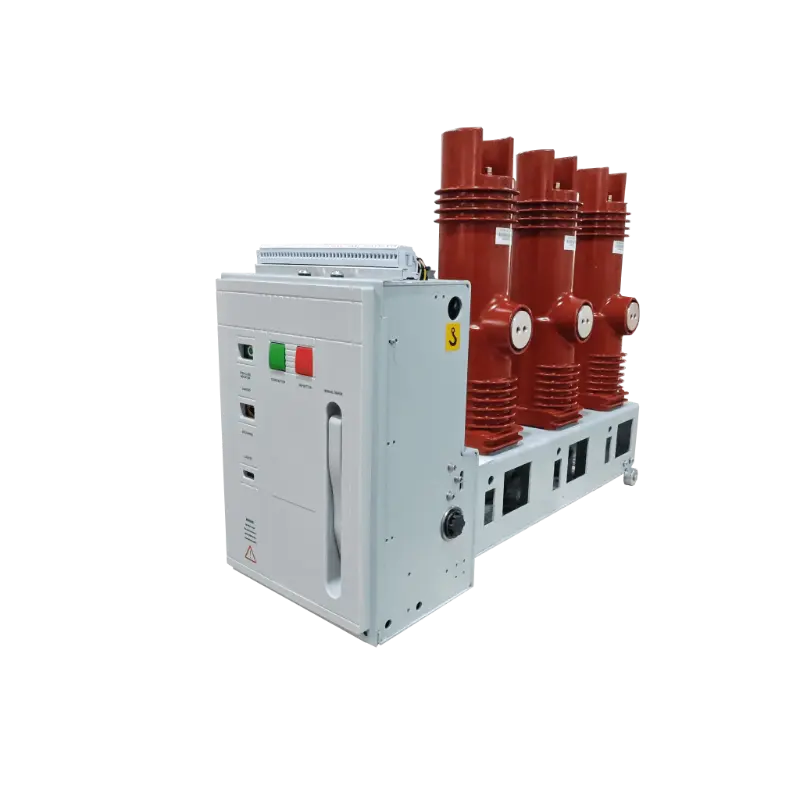

Which maintenance challenges are uniquely associated with side-mounted indoor high voltage vacuum circuit breakers
2026-05-29
When maintaining a Side-mounted Indoor High Voltage Vacuum Circuit Breaker, engineers and facility managers often face distinct obstacles not found in conventional front-access or fixed-mounted switchgear. At Comewill, we have observed that the side-mounted configuration, while space-efficient, introduces specific accessibility, alignment, and insulation integrity concerns that demand a tailored maintenance strategy.
Primary Maintenance Challenges and Mitigation Strategies
| Challenge | Description | Recommended Action by Comewill |
|---|---|---|
| Limited frontal access to moving contacts | The side-mounted design places main contacts and arc extinguishing chambers close to the panel wall, making visual inspection and contact wear measurement difficult. | Use borescopes or scheduled chassis withdrawal with temporary bus disconnection. |
| Uneven mechanical linkage stress | Long pull rods and linkages in Side-mounted Indoor High Voltage Vacuum Circuit Breaker systems can develop alignment drift over time, causing uneven contact force. | Perform biannual stroke and synchronism checks using calibrated travel transducers. |
| Insulation surface contamination near side walls | Reduced clearance to earthed side plates accelerates creepage current paths, especially in dusty or humid indoor substations. | Apply hydrophobic insulating coatings and increase cleaning frequency in the side compartment. |
| Difficulty in lubrication of side-mounted mechanisms | Grease points on the operating mechanism may be buried behind cable compartments, leading to missed lubrication or over-greasing. | Redesign lubrication access ports or use extended nozzle applicators during shutdowns. |
Side-mounted Indoor High Voltage Vacuum Circuit Breaker FAQ – Common questions from field maintenance teams
Q1: How can I measure contact wear on a side-mounted breaker without fully removing the breaker from the panel?
A1: Direct visual measurement of contact erosion is often impractical because the vacuum interrupter is rotated toward the side wall. Instead, Comewill recommends using a super ohmmeter to track static contact resistance trends over time. An increase exceeding 30% from the baseline typically indicates wear. Alternatively, install a contact stroke monitoring sensor on the insulated pull rod during scheduled maintenance, comparing travel distance to factory calibration. Full chassis withdrawal should only be performed during major overhauls every 3–5 years.
Q2: Why does my side-mounted vacuum circuit breaker show increased partial discharge readings on the side closest to the panel wall
A2: This is a classic sign of side-wall proximity effect. The narrow air gap between the side-mounted vacuum interrupter and the earthed metal enclosure reduces the dielectric margin. Over time, conductive dust or moisture bridges this gap, generating partial discharge. Comewill recommends installing a thin dielectric shield (such as epoxy or polycarbonate) on the inner panel wall and conducting annual TEV (Transient Earth Voltage) measurements specifically focused on the side-facing region. If discharge persists, increase the clearance by adjusting mounting brackets, provided short-circuit withstand ratings remain valid.
Q3: How does side-mounting affect the required frequency of mechanism lubrication compared to a center-mounted breaker
A3: Side-mounted Indoor High Voltage Vacuum Circuit Breaker mechanisms generally require 40–50% more frequent lubrication of the lateral transfer bar and connecting rods, because these components operate with a different gravity vector and side-loading stress. Center-mounted designs benefit from symmetrical force distribution. For a side-mounted unit, Comewill recommends lubrication every 2000 mechanical operations or 18 months, whichever comes first. Use a lithium-based low-temperature grease applied precisely to the side linkage pivot points. Always perform ten no-load closing/opening cycles after lubrication to distribute the grease evenly before returning to service.
Conclusion
Understanding these unique maintenance challenges is essential to maximize the service life of any Side-mounted Indoor High Voltage Vacuum Circuit Breaker. By adopting targeted inspection methods, discharge mitigation measures, and proactive lubrication schedules, plant operators can avoid unplanned downtime. Comewill provides full technical support, retrofitting kits, and custom maintenance protocols for side-mounted breaker panels.
