What Makes an Air Circuit Breaker Essential for Modern Electrical Systems?

In modern industrial and commercial electrical systems, safety, reliability, and efficiency are crucial. One of the most vital components ensuring these factors is the Air Circuit Breaker (ACB). Manufactured and supplied by companies like Wenzhou Xucky Electric Co., Ltd., Air Circuit Breakers are designed to protect electrical circuits from overload, short-circuit, and other electrical faults, ensuring uninterrupted operation and safety.

Air Circuit Breakers are widely used in factories, power plants, commercial complexes, and residential high-rise buildings due to their robust design, high reliability, and adaptability to different voltage and current ratings.

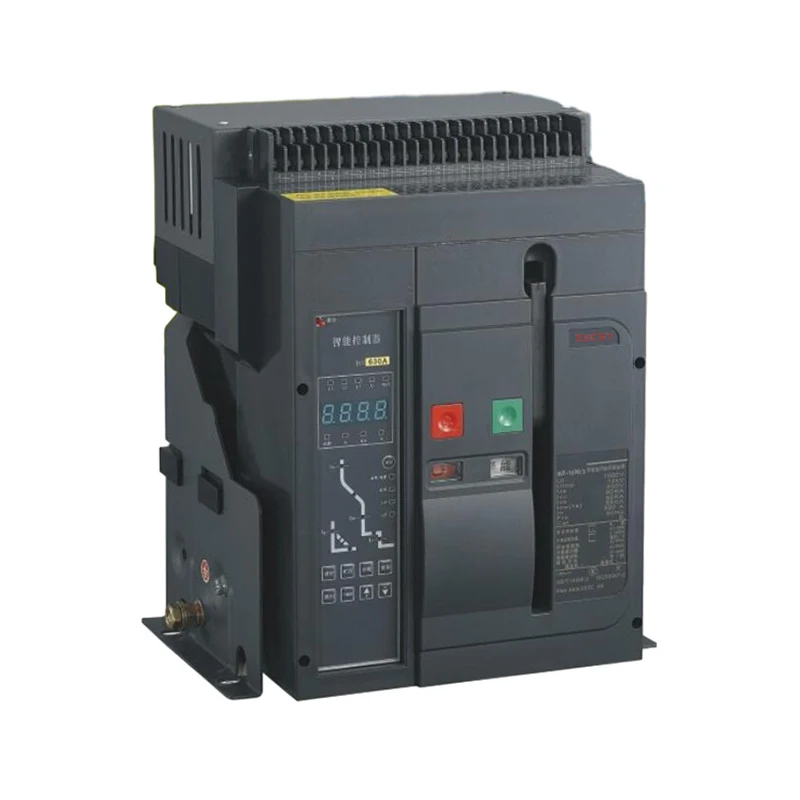

What Is an Air Circuit Breaker?

An Air Circuit Breaker is an automatic switching device that can interrupt fault currents and protect electrical equipment from damage. Unlike miniature or molded-case circuit breakers, ACBs are used for higher power applications, typically in the range of 800A to 6300A.

Key features of Air Circuit Breakers include:

• High interrupting capacity

• Adjustable trip settings for overload and short-circuit protection

• Easy maintenance and modular design

• Long service life

How Does an Air Circuit Breaker Work?

The operation of an Air Circuit Breaker is based on two main principles: thermal protection and magnetic protection.

1. Thermal Protection – Uses a bimetallic strip to detect prolonged overloads. When the strip heats up, it bends and triggers the breaker to open, stopping the flow of electricity.

2. Magnetic Protection – Employs an electromagnet that reacts instantly to short-circuit conditions, opening the circuit within milliseconds.

This dual mechanism ensures both gradual and sudden electrical faults are effectively managed.

Air Circuit Breaker vs. Molded Case Circuit Breaker

The table clearly shows why ACBs are preferred for large-scale applications, while MCCBs are ideal for smaller electrical loads.

Importance of Air Circuit Breakers

Air Circuit Breakers play a vital role in electrical safety and efficiency:

• Protecting Equipment: Prevents motors, transformers, and generators from damage caused by faults.

• Reducing Downtime: Fast and reliable interruption of faults ensures minimal operational interruptions.

• Ensuring Safety: Protects personnel from electric shocks and hazards.

• Scalability: Suitable for systems with future expansion needs.

Applications and Usage

Air Circuit Breakers are versatile and used across various sectors:

• Industrial plants and factories

• Commercial high-rise buildings

• Power distribution substations

• Data centers and server farms

Wenzhou Xucky Electric Co., Ltd. offers a range of ACBs tailored to specific applications, ensuring compliance with international standards and long-term reliability.

Benefits of Choosing Wenzhou Xucky Electric Co., Ltd. Air Circuit Breakers

• High-performance interrupting capacity for industrial loads

• Modular and easy-to-maintain designs

• Energy-efficient solutions that reduce operational costs

• Customizable configurations for voltage and current ratings

Frequently Asked Questions (FAQ)

Q1: What is the main advantage of an Air Circuit Breaker?
A1: ACBs provide high interrupting capacity, fast fault detection, and protection for large electrical systems.

Q2: How often should Air Circuit Breakers be maintained?
A2: Regular inspection every 6-12 months is recommended, depending on system usage.

Q3: Can ACBs be used in low-power applications?
A3: While possible, MCCBs are more cost-effective for low-power systems.

Air Circuit Breakers are indispensable for modern electrical infrastructure, offering reliability, safety, and scalability. Wenzhou Xucky Electric Co., Ltd. is committed to providing high-quality Air Circuit Breakers that meet the demands of industrial, commercial, and residential applications.

For more information or to request a customized solution, contact us today and secure your electrical system with the best protection.
