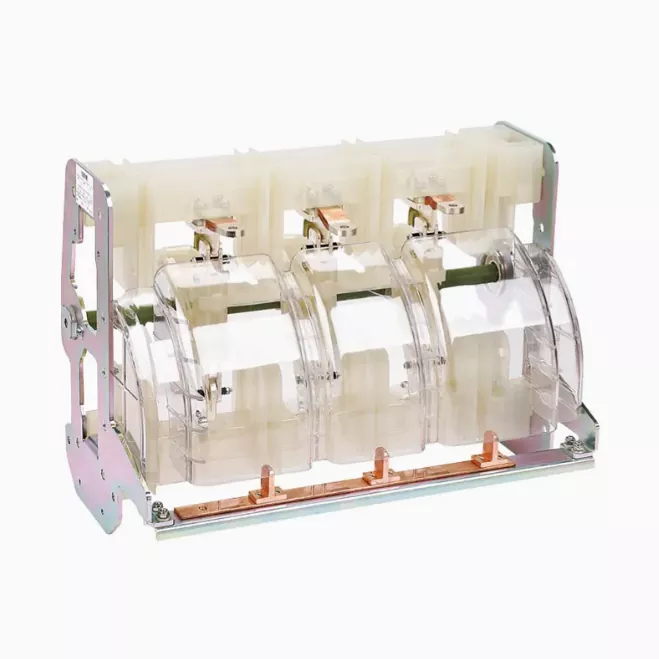

What Are the Technical Specifications to Check Before Buying a 12KV 630A Environmentally Friendly PT Isolating Switch
2026-06-08
Selecting the right 12KV 630A Environmentally Friendly PT Isolating Switch is critical for grid reliability. Senguang recommends verifying five core specifications to ensure safety and green compliance.
Key Technical Parameters to Verify
| Parameter | Required Value | Why It Matters |
|---|---|---|
| Rated Voltage | 12KV | Ensures compatibility with medium-voltage networks. |
| Rated Current | 630A | Supports standard feeder and transformer loads. |
| Short-Time Withstand Current | 20kA / 3 sec | Guarantees stability under fault conditions. |
| Mechanical Endurance | ≥10,000 operations | Confirms long-term reliability without frequent replacement. |
| PT Accuracy Class | 0.5 or 1.0 | Essential for precise metering and protection. |
Environmental & Material Checklist
-
Insulation medium: Dry air or biodegradable gas (zero SF6).
-
Enclosure rating: IP67 for outdoor dust/water resistance.
-
Operating temperature: -25°C to +55°C.
12KV 630A Environmentally Friendly PT Isolating Switch – FAQ
Q1: How does this switch achieve environmentally friendly operation without SF6 gas?
A1: The Senguang design uses vacuum interruption and solid insulation materials. This eliminates greenhouse gas emissions while maintaining a 630A continuous current rating. The result is a 12KV 630A Environmentally Friendly PT Isolating Switch that meets strict RoHS and EU eco-design directives.
Q2: What protection functions does the built-in PT provide?
A2: The potential transformer (PT) supplies voltage signals for overvoltage protection, undervoltage lockout, and synchro-check. In a 12KV 630A Environmentally Friendly PT Isolating Switch, the PT accuracy remains within ±1% from -25°C to +55°C, enabling sensitive relay coordination.
Q3: Can this switch be used for both ring main units and outdoor pole-mounted installations?
A3: Yes. The 12KV 630A Environmentally Friendly PT Isolating Switch from Senguang features a compact, modular housing (IP67). It fits into RMU cabinets with a 375mm width and also mounts on outdoor poles using galvanized brackets. The same 630A rating applies to both configurations.
Final Checklist Before Purchase
-
Verify third-party type test reports (KEMA or equivalent).
-
Confirm that the SF6-free design matches your sustainability goals.
-
Check that the PT secondary wiring is compatible with your protection relay (100-120VAC).
Contact Us
For a detailed datasheet or a customized quotation for the Senguang 12KV 630A Environmentally Friendly PT Isolating Switch, please contact us today – our engineering team will respond within 24 hours.
