How Does a 33kV Outdoor VCB Improve Power System Reliability?

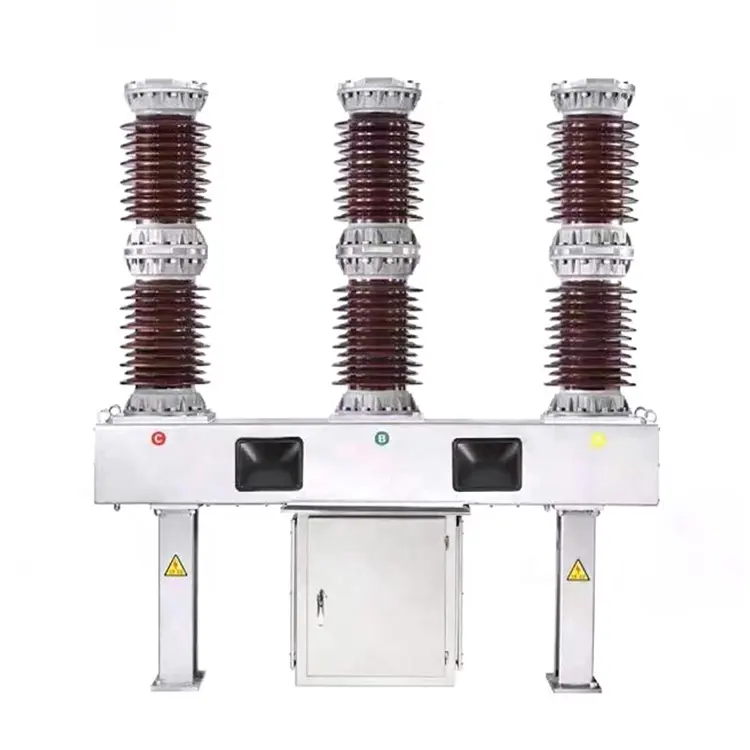

What Is a 33kV Outdoor VCB Vacuum Circuit Breaker?

A 33kV outdoor VCB vacuum circuit breaker is a medium-voltage switching device designed for electrical networks with a nominal system voltage of 33kV, subject to the equipment's declared ratings and applicable system requirements. VCB stands for vacuum circuit breaker, referring to the vacuum interrupter used to extinguish the electrical arc when contacts separate.

Unlike an ordinary isolator, a circuit breaker is designed to make and interrupt specified electrical currents under defined operating conditions. When a fault occurs, the associated protection system detects the abnormal condition and sends a trip command. The breaker then opens its contacts to interrupt the current within its rated capability.

An outdoor unit typically includes vacuum interrupters, external insulation, a supporting structure, an operating mechanism, control components, and connection terminals. Depending on the design, it may use porcelain or polymeric insulation and a spring-operated or other approved mechanism.

The term 33kV identifies the nominal network voltage, not every electrical rating of the breaker. Equipment for a 33kV network may have a rated maximum voltage of 36kV, but the correct value must be confirmed against the applicable standard, system design, and manufacturer's nameplate.

How Does Vacuum Interruption Work?

When the breaker opens under load or fault conditions, its contacts separate inside a vacuum interrupter. The resulting arc is sustained temporarily by metal vapor released from the contacts. Because the interrupter contains a high vacuum, the arc environment differs significantly from that of air-insulated switching devices.

At an appropriate current zero, the metal vapor rapidly condenses and the gap between the contacts regains dielectric strength. If the interrupter and the complete breaker are correctly designed for the duty, the current is interrupted and the circuit remains open.

The Main Operating Stages

1. Fault detection: Current transformers, voltage transformers where required, and protective relays monitor electrical conditions.
2. Trip command: The protection system activates the breaker's tripping circuit when its configured operating criteria are met.
3. Contact separation: The operating mechanism drives the contacts apart inside the vacuum interrupter.
4. Arc interruption: The vacuum interrupter extinguishes the arc at the appropriate current zero and withstands the recovery voltage within its rating.
5. Status confirmation: Auxiliary contacts and position indicators provide status information to local controls or a supervisory system when configured.

Why the Operating Mechanism Matters

The interrupter is only one part of the complete protection device. The operating mechanism must deliver the required opening and closing performance consistently. Spring-charging components, trip coils, closing coils, auxiliary contacts, control wiring, and interlocks all contribute to dependable operation.

For automated distribution networks, compatible controllers and remote-control interfaces can support monitoring and switching. However, SCADA compatibility depends on the complete control and communication arrangement, not merely the presence of a vacuum interrupter.

Where Are Outdoor 33kV VCBs Used?

Utility Distribution Substations

Utilities use outdoor medium-voltage circuit breakers to control outgoing feeders, sectionalize circuits, and isolate faulted sections when the protection scheme and network design require it. Correct breaker selection helps reduce the impact of electrical faults on the wider distribution system.

Industrial Power Systems

Manufacturing facilities, processing plants, and other large industrial sites may operate private medium-voltage distribution networks. Outdoor VCBs can form part of incoming supply arrangements, transformer feeder protection, or distribution switching systems.

Renewable Energy Projects

Solar farms, wind power projects, and associated substations may use medium-voltage breakers for collection circuits, transformer connections, or feeder protection. Switching duty, fault levels, transient conditions, and operating frequency should be assessed for the specific installation.

Overhead Line Networks

Outdoor circuit breakers can be installed in overhead distribution networks where a suitable design is required for switching and fault interruption. Depending on the project, additional protection relays, controllers, current transformers, and reclosing equipment may be needed.

Application suitability must be confirmed through a system study and the manufacturer's technical documentation. A device designed for one switching duty should not automatically be assumed suitable for every feeder, transformer, capacitor bank, or renewable-energy application.

Key Benefits of a 33kV Outdoor VCB for Power Distribution Projects

Reliable Fault Interruption Within Rated Limits

A correctly specified VCB can interrupt designated load and fault currents, helping protective systems isolate affected circuits. Actual performance depends on rated breaking capacity, transient recovery voltage, operating sequence, and coordination with upstream and downstream protection.

Reduced Dependence on Arc-Extinguishing Consumables

Vacuum interruption does not rely on an oil-filled arc-extinguishing chamber. This eliminates the need for arc-quenching oil in the vacuum interrupter itself. The complete installation may still contain other insulating materials or auxiliary equipment that require inspection and maintenance.

Suitability for Outdoor Installation

Outdoor designs can incorporate weather-resistant operating cabinets, appropriate insulators, corrosion protection, and structural supports. These features help the equipment withstand its specified environment, but the correct configuration must be selected for the actual temperature, altitude, pollution, humidity, wind, and seismic conditions.

Integration with Protection and Automation

Where required, compatible protection relays, controllers, remote operating circuits, and communication interfaces can support centralized supervision. Buyers should verify the control voltage, wiring diagram, auxiliary contact arrangement, communication protocol, and interface requirements before procurement.

Lifecycle Planning

Vacuum interrupters and operating mechanisms can be designed for substantial operating life. Nevertheless, actual maintenance intervals and expected service life depend on the model, switching duty, number and type of operations, environmental exposure, and the manufacturer's maintenance instructions.

Technical Specifications Buyers Must Check Before Ordering

For an international procurement project, a detailed technical data sheet is essential. The following parameters should be confirmed against the single-line diagram, short-circuit study, system grounding arrangement, and applicable project specification.

Illustrative Ratings for Preliminary Comparison

Published 33kV outdoor VCB specifications demonstrate that different projects can require different ratings. For example, public utility specifications include designs with rated currents such as 1,250A or 1,600A and short-circuit breaking currents such as 25kA. These are examples from different specifications, not universal requirements or a statement of the ratings of every SYHF model.

Do not select a breaker solely because its published values appear similar to another project. The final equipment must satisfy the actual network fault level, thermal duty, insulation coordination, operating sequence, and applicable standards.

Applicable Standards and Test Evidence

IEC 62271-100 is a key international standard for high-voltage alternating-current circuit breakers. Other standards and local grid requirements may also apply to the equipment and installation. Buyers should identify the contractually required editions and ask for the relevant type-test reports, routine test records, and compliance documentation.

For project procurement, confirm the complete test scope and whether the evidence covers the offered model or a technically representative design. Never assume compliance from a general statement alone.

How to Select the Right 33kV Outdoor VCB

Step 1: Define the Electrical System

Identify the nominal and maximum system voltages, frequency, grounding method, maximum and minimum fault levels, normal load current, and switching duties. Confirm whether the breaker is intended for a transformer feeder, overhead line, bus section, or another application.

Step 2: Match the Fault Interruption Requirements

The rated short-circuit breaking current must be sufficient for the calculated fault level at the installation point. Engineers should also review short-time withstand, making current, peak withstand, transient recovery voltage, and the specified operating sequence as applicable.

Step 3: Assess the Outdoor Environment

Outdoor equipment may face rain, direct sunlight, dust, industrial pollution, salt-laden air, extreme temperatures, and high altitude. Evaluate insulation creepage distance, enclosure protection, corrosion resistance, and any special environmental options required for the site.

Step 4: Specify Control and Protection Interfaces

Confirm relay requirements, CT ratios and accuracy classes where applicable, control supply, tripping arrangements, auxiliary contacts, remote indication, and automation interfaces. The breaker and protection scheme must operate together as a coordinated system.

Step 5: Review the Commercial Scope

Ask whether the quotation includes the mounting structure, operating cabinet, terminal connectors, control accessories, current transformers if required, commissioning support, documentation, and spare parts. A low initial quotation may not include every item needed for a complete installation.

Step 6: Compare Lifecycle Value

Consider purchase price alongside maintenance requirements, spare-part availability, technical support, expected operating duty, and delivery commitments. For critical electrical infrastructure, dependable technical documentation and after-sales support can be as important as the initial unit price.

Installation and Commissioning Considerations for Outdoor VCBs

High-voltage equipment must be installed, tested, and commissioned by qualified personnel under the approved project procedures and applicable electrical safety rules. The following points are planning considerations, not a substitute for the manufacturer's installation manual.

Foundation and Mechanical Alignment

Verify the foundation, mounting structure, anchor bolts, required clearances, and alignment against the approved drawings. The supporting structure must meet the mechanical and environmental requirements for the selected equipment.

Electrical Connections and Earthing

Confirm that conductor sizes, terminal connectors, phase clearances, earthing connections, and cable or bus interfaces match the approved design. Connection torque values and installation methods should follow the manufacturer's instructions.

Control Wiring and Functional Tests

Check the control supply, trip and close circuits, auxiliary contacts, local/remote selection, interlocks, and position indication. Functional testing should verify that the equipment responds correctly to approved operating commands and protection signals.

Insulation and Commissioning Records

Required inspections and electrical tests may include insulation checks, contact resistance measurements, timing tests, mechanical operation checks, and other procedures specified by the manufacturer and project engineer. Test voltages and methods must be suitable for the actual equipment; inappropriate testing can cause damage or create hazards.

Document the test results, equipment serial numbers, settings, wiring changes, and outstanding issues. Keep the approved drawings and commissioning records available for future maintenance.

Maintenance and Troubleshooting for Outdoor Vacuum Circuit Breakers

Although vacuum circuit breakers can reduce certain maintenance requirements, they are not maintenance-free in every application. Outdoor exposure, mechanical wear, electrical duty, and auxiliary circuit conditions should all be considered when establishing an inspection plan.

Routine Visual Inspection

• Inspect external insulators for cracks, contamination, tracking, or visible damage.
• Check for corrosion, loose hardware, water ingress, and damage to the operating cabinet.
• Review mechanical position indicators and accessible auxiliary wiring.
• Look for signs of overheating or deterioration at terminals and connections.
• Check event logs and operation counters where such functions are available.

Mechanical and Electrical Condition

Qualified maintenance personnel should follow the manufacturer's schedule for operating mechanism inspection, lubrication where specified, contact wear assessment, timing checks, and control-circuit testing. The vacuum interrupter's condition should be assessed using approved methods and the manufacturer's stated limits.

Common Symptoms That Need Investigation

These symptoms are not definitive diagnoses. Never bypass protective interlocks or repeatedly operate a suspect breaker to test a theory. The circuit must be placed in a safe condition under approved isolation and lockout procedures before authorized personnel investigate the equipment.

How to Evaluate a 33kV Outdoor VCB Manufacturer

Choosing a manufacturer is a technical and commercial decision. Buyers should evaluate whether the supplier can deliver equipment that meets the project specification, provide verifiable documentation, and support the product throughout its intended service life.

Review Technical Capabilities

Ask for product drawings, rated parameter sheets, applicable standards, type-test documentation, routine test arrangements, and details of the operating mechanism. Request clear confirmation of the model being quoted and any options included in the offer.

Check Production and Quality Controls

Understand how incoming materials, assembly processes, mechanical operations, electrical tests, and final inspections are controlled. Where relevant, request information about quality management certification and its scope.

Confirm Customization and Project Support

Some projects require specific control voltages, terminal arrangements, mounting structures, auxiliary contacts, protection accessories, or environmental configurations. Confirm technical feasibility before assuming that a standard product can meet every requirement.

Evaluate Documentation and Delivery

Discuss manufacturing lead time, packing method, shipping arrangements, warranty conditions, spare parts, technical assistance, and documentation language. For tender projects, confirm that the supplier can complete the required technical schedules and respond to clarification requests.

SYHF (Jiangsu) Electric Co., Ltd.'s 33kV Outdoor VCB Vacuum Circuit Breaker is intended for outdoor medium-voltage power distribution applications. Buyers can contact SYHF to confirm the offered model's ratings, available operating mechanism, environmental limits, optional accessories, applicable test documentation, and project-specific suitability.

For a more efficient quotation process, prepare the required quantity, destination country, system voltage, rated current, short-circuit level, control supply, installation environment, and applicable standards before sending an inquiry.
