How Can an Outdoor Vacuum Circuit Breaker Improve Power Distribution Reliability?

Article Outline

• Product fundamentals: construction, function, and vacuum arc interruption.
• Application requirements: overhead feeders, substations, industrial facilities, and renewable energy installations.
• Technical decisions: rated voltage, continuous current, fault interruption, insulation, and control options.
• Lifecycle considerations: installation, inspection, maintenance, documentation, and supplier support.

1. Understanding an Outdoor Vacuum Circuit Breaker

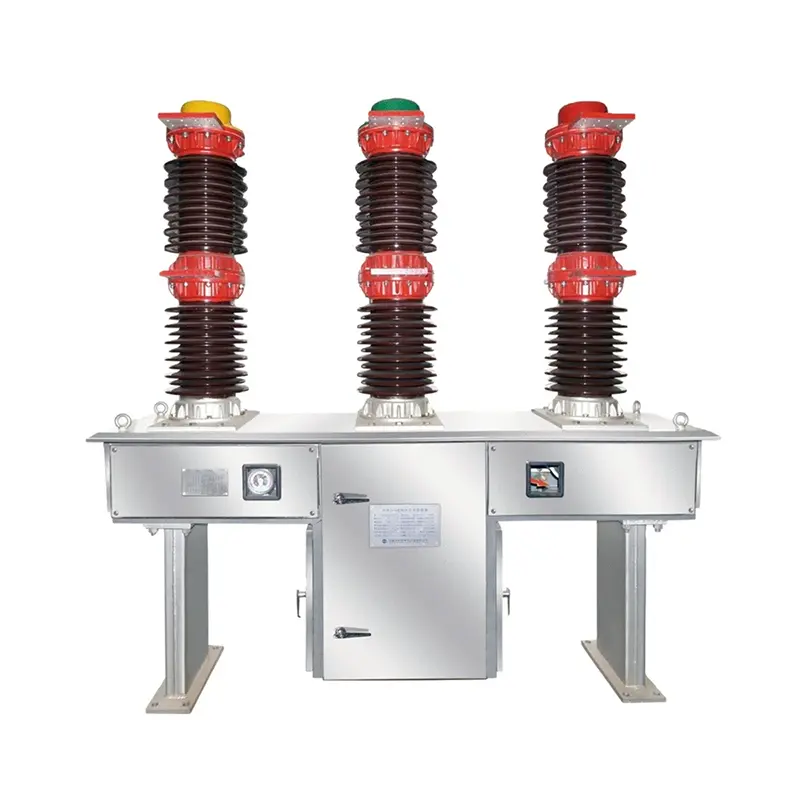

An outdoor vacuum circuit breaker, commonly abbreviated as an outdoor VCB, is a switching and protection device used in electrical power systems. It opens or closes a circuit under specified operating conditions and interrupts fault current when instructed by a suitable protection system.

Unlike an indoor circuit breaker installed within a dedicated switchgear enclosure, an outdoor unit is designed for installation in exposed environments. Depending on the model, it may be mounted on a utility pole, a support structure, or a ground-level installation. Its construction must account for weather exposure, insulation requirements, mechanical stability, and safe access for servicing.

The main components typically include vacuum interrupters, an operating mechanism, insulating supports, primary terminals, a supporting frame, and auxiliary control circuits. Some configurations also incorporate current transformers, a controller, communication interfaces, or a separate disconnector arrangement.

For buyers, the most important point is that the product name alone does not define its suitability. Two outdoor VCBs may look similar but have different voltage ratings, breaking capacities, control supplies, mounting dimensions, and automation functions.

2. How Vacuum Interruption Works

When a circuit breaker opens while carrying current, an electrical arc may form between its separating contacts. A vacuum interrupter uses a sealed vacuum environment to help extinguish this arc and restore electrical insulation after current interruption.

The interruption sequence

1. Fault detection: A protection relay or controller identifies an abnormal electrical condition and issues a trip command.
2. Contact separation: The operating mechanism moves the contacts apart inside the vacuum interrupter.
3. Arc formation: Metal vapor released from the contacts sustains an arc temporarily while current flows.
4. Current interruption: At the appropriate current zero, the arc extinguishes and the contact gap begins recovering its dielectric strength.
5. Circuit isolation: When the breaker has successfully interrupted the current, the affected circuit remains open until an authorized closing operation occurs.

Actual performance depends on the interrupter design, contact condition, operating speed, rated electrical duty, and overall equipment configuration. The vacuum interrupter does not independently provide every protection function. Detection, trip logic, control power, and coordination with other protective devices must also be properly engineered.

3. Where Outdoor VCBs Are Used

Outdoor vacuum circuit breakers are commonly applied wherever exposed medium-voltage circuits require dependable switching and fault interruption. The appropriate design depends on network topology, electrical duty, environmental conditions, and maintenance access.

Overhead distribution networks

Utilities use outdoor VCBs to protect and control sections of overhead distribution feeders. Properly coordinated protection can isolate a faulted section and help prevent unnecessary interruptions across the wider network.

Industrial facilities

Manufacturing plants, mining operations, and large commercial facilities may use outdoor breakers at distribution points, transformer connections, or dedicated electrical installations. The selected equipment must match the facility's load characteristics and available fault current.

Renewable energy projects

Solar farms and wind power installations may require outdoor switching equipment at collection points, feeder connections, or substations. Project engineers should check switching duties, environmental exposure, protection coordination, and integration with the overall control system.

Rural and remote electrification

Remote distribution networks can present difficult maintenance conditions because technicians may need to travel considerable distances to inspect equipment. Weather-resistant construction, suitable remote control options, and clear maintenance documentation can make a significant difference to long-term operations.

Substations and utility switching points

Outdoor breakers can serve designated feeder or switching functions within substations. The required configuration must be coordinated with bus arrangements, instrument transformers, disconnectors, grounding provisions, and the substation protection scheme.

4. Key Advantages for Power Distribution

A well-specified outdoor vacuum circuit breaker can support safe, reliable, and economical electrical operation throughout its service life.

Efficient arc interruption

Vacuum interrupters provide effective interruption for their specified electrical duties. Their sealed construction limits exposure of the internal contact system to external contaminants under normal operating conditions.

Reduced routine servicing requirements

Vacuum interruption can reduce certain maintenance requirements compared with technologies that depend on interrupting oil. However, the operating mechanism, insulation, terminals, control circuits, and external structures still require inspection according to the manufacturer's instructions.

Improved protection coordination

When correctly integrated with relays and controllers, an outdoor VCB can help isolate faults in the intended section of a distribution network. This can reduce the extent of an interruption and support restoration procedures.

Options for remote operation

Motor-operated breakers and compatible controllers can support remote switching, status monitoring, and selected automation functions. These capabilities depend on the exact configuration and should be confirmed rather than assumed from the product family name.

Adaptability to outdoor installations

Outdoor designs can be configured for different mounting arrangements and environmental conditions. Specifying the correct enclosure, insulator design, corrosion protection, and environmental ratings helps address site-specific risks.

5. Important Selection Factors for Outdoor Vacuum Circuit Breakers

Choosing the right outdoor VCB starts with the electrical system specification, not simply the lowest quoted price. The following factors help buyers avoid mismatched equipment and unnecessary engineering changes.

5.1 Rated voltage and insulation level

Confirm the nominal system voltage and the highest voltage for which the equipment must be rated. Then verify the required power-frequency and lightning impulse withstand levels, insulation arrangement, and applicable altitude corrections.

Do not assume that two products described as suitable for the same nominal network voltage have identical insulation capabilities. The complete model and its technical documentation must be checked against the project requirements.

5.2 Rated continuous current

The rated current must accommodate the expected operating load under the specified service conditions. Consider present demand, anticipated load growth, ambient temperature, and any applicable derating requirements.

Common catalogue ratings may include 630 A and 1,250 A, but these values are examples rather than universal recommendations. The correct rating should be established by the system design and confirmed against the selected product's documentation.

5.3 Short-circuit breaking capacity

The breaker must be capable of interrupting the prospective fault current at its installation point. Check the rated short-circuit breaking current, short-time withstand current, associated duration, and other applicable making and interruption duties.

Using a breaker with inadequate fault ratings can create a serious safety hazard. Ask the project engineer or utility for the applicable fault-level study instead of estimating the required capacity from the normal load current.

5.4 Environmental conditions

Outdoor equipment may face rain, humidity, condensation, dust, salt, industrial pollution, strong sunlight, wind, or extreme temperatures. High-altitude installations can also affect insulation performance.

Provide the supplier with the site's temperature range, altitude, pollution conditions, and other relevant environmental data. Confirm any enclosure protection, corrosion resistance, creepage distance, or special configuration requirements for the specific model.

5.5 Operating mechanism and control supply

Determine whether manual or motorized operation is required. Confirm the opening and closing coil ratings, control power source, auxiliary contacts, operating sequence, and any backup supply requirements.

Where automatic reclosing, remote switching, fault indication, or communications are needed, define the required functions and interfaces in the specification. A standard breaker may not include every accessory or control function.

5.6 Installation configuration and dimensions

Verify mounting-hole positions, overall dimensions, terminal orientation, conductor connections, operating clearances, and the location of control wiring. For replacement projects, compare the proposed drawings with the existing equipment before approving the order.

6. Technical Parameter Comparison Table

Use the following table as a starting point when preparing a technical specification or comparing supplier quotations.

Note: Final ratings and acceptable limits depend on the specific model, applicable standards, utility requirements, and project design. The table is a purchasing aid, not a substitute for engineering approval.

7. A Step-by-Step Selection Process

A structured selection process makes it easier to compare products fairly and reduces the risk of missing important requirements.

Step 1: Define the network and duty

Gather the single-line diagram, nominal voltage, maximum system voltage, expected load, available fault current, and required switching functions. These documents establish the foundation for the technical selection.

Step 2: Establish the installation conditions

Record the installation location, mounting arrangement, ambient temperature, altitude, pollution level, and exposure to moisture or corrosive substances. Identify any space restrictions or access limitations.

Step 3: Specify protection and automation

Determine whether the application needs overcurrent protection, earth-fault protection, automatic reclosing, remote control, event indication, or communication with a supervisory system. Confirm the interfaces and required accessories.

Step 4: Review technical documents

Request the product datasheet, outline drawing, wiring diagram, operating instructions, and relevant test documentation. Check that each document corresponds to the exact proposed model and configuration.

Step 5: Compare quotations on equal terms

Review rated performance, supplied accessories, control equipment, testing scope, delivery conditions, warranty, and technical support. A lower initial price may not represent better value if essential accessories or documentation are excluded.

Step 6: Confirm approval before production

Resolve technical questions, approve drawings, confirm the bill of materials, and document any deviations from the original specification. This final review helps reduce rework, installation delays, and acceptance disputes.

8. Installation and Commissioning Considerations

Correct installation is essential to achieving the performance expected from an outdoor vacuum circuit breaker. Work must be carried out by qualified personnel under approved procedures, with the circuit safely isolated and the required grounding and lockout measures in place.

Before installation

• Inspect the delivered equipment for transport damage, cracked insulators, loose components, or signs of moisture ingress.
• Check the nameplate against the approved technical specification.
• Verify mounting dimensions, support strength, terminal clearances, and cable or conductor arrangements.
• Review the installation manual and identify any model-specific tools or lifting requirements.

During installation

• Use the specified lifting points and approved handling methods.
• Secure the breaker to the support structure in accordance with the manufacturer's instructions.
• Complete primary connections, grounding, and control wiring according to approved drawings.
• Protect insulators and terminals from damage, contamination, and excessive mechanical stress.

During commissioning

Authorized personnel should verify mechanical operation, electrical connections, control and trip circuits, interlocks where fitted, protection settings, and status indications. Perform the tests specified by the manufacturer, project documents, and applicable standards. Record the results before energization.

9. Maintenance and Troubleshooting

Although vacuum interrupters can reduce certain servicing needs, an outdoor VCB is still an electromechanical device operating in a changing environment. A planned inspection program helps identify deterioration before it affects service reliability.

Recommended inspection areas

• External insulation: Look for cracks, contamination, tracking, or physical damage.
• Primary connections: Check for corrosion, looseness, overheating indicators, and damage.
• Operating mechanism: Inspect according to the specified procedure for wear, lubrication needs, abnormal noise, and mechanical irregularities.
• Control circuits: Check wiring, terminals, trip and close circuits, auxiliary contacts, and control power.
• Enclosure and seals: Look for water ingress, corrosion, damaged gaskets, and condensation where relevant.
• Operation records: Review trip events, switching counts, alarms, and recurring faults where monitoring is available.

Common symptoms and possible causes

These symptoms are diagnostic starting points, not definitive fault diagnoses. Maintenance intervals, vacuum integrity checks, contact wear limits, insulation tests, and mechanical adjustments must follow the specific manufacturer's instructions and the applicable maintenance program.

10. How to Evaluate an Outdoor VCB Manufacturer

Choosing a suitable supplier involves more than reviewing a catalogue and comparing prices. Technical consistency, document quality, production controls, and after-sales support all influence project risk.

Verify product and engineering capabilities

Ask whether the supplier can provide a product matching the required voltage class, continuous current, short-circuit duty, installation arrangement, and control scheme. If customization is required, clarify the engineering review process and the limits of the proposed changes.

Review testing and technical documentation

Request applicable type-test evidence, routine test documentation, technical drawings, operating manuals, and compliance records. Verify the tested product's ratings and configuration against the proposed equipment rather than assuming that a report for one model covers an entire product family.

Confirm production and quality controls

Discuss component traceability, assembly checks, inspection procedures, final testing, and how nonconforming products are handled. Buyers should understand which inspections are included and which records will be supplied with the order.

Assess communication and after-sales support

Reliable project communication helps resolve questions about wiring, mounting dimensions, spare parts, installation, and commissioning. Before ordering, clarify response arrangements, warranty coverage, technical support scope, and the availability of replacement components.

Consider Zhejiang SanGao Electric Co., Ltd.

Zhejiang SanGao Electric Co., Ltd. is the company featured in this article. Buyers evaluating outdoor vacuum circuit breakers can contact the company to discuss project requirements, product configurations, and the technical documentation needed for their applications.

When requesting information, provide the voltage class, current rating, fault level, mounting arrangement, environmental conditions, control requirements, and quantity. This allows the supplier to review the application more precisely and identify any technical information that still needs confirmation.

11. Outdoor Vacuum Circuit Breaker Purchasing Checklist

Before requesting a quotation or approving a purchase order, prepare the following information.

• Nominal system voltage and required equipment voltage rating
• Rated continuous current and applicable derating conditions
• Prospective short-circuit current and required interruption duty
• Power-frequency and lightning impulse insulation requirements
• Outdoor mounting type, dimensions, terminal layout, and clearances
• Site temperature, altitude, humidity, pollution, and corrosion conditions
• Manual or motorized operation and required control power
• Protection relays, current transformers, controller, and communication interfaces
• Required drawings, test reports, manuals, and compliance documents
• Quantity, delivery location, packaging requirements, and target schedule
• Warranty terms, spare parts, and technical support expectations

For replacement projects, also include the existing nameplate, installation photographs, wiring diagrams, and mounting drawings where available. These details help identify differences before manufacturing or delivery.

12. Frequently Asked Questions

13. Conclusion: Make the Right Decision Before Ordering

An outdoor vacuum circuit breaker is an important component in maintaining dependable power distribution. Its effectiveness depends on matching the equipment's electrical ratings, interruption capability, insulation design, outdoor construction, and control functions to the actual application.

For procurement teams, the best approach is to define the project requirements first, review technical documentation carefully, compare quotations on a consistent basis, and confirm the complete configuration before production. Proper installation, commissioning, and scheduled maintenance then help protect equipment performance throughout its service life.

Whether you are upgrading an existing feeder, developing a new substation, or sourcing equipment for an industrial distribution project, careful specification can reduce avoidable delays and support a safer, more reliable installation.
