How Can a 15000 KVA Oil Immersed Self Cooled Transformer Deliver Reliable Power?

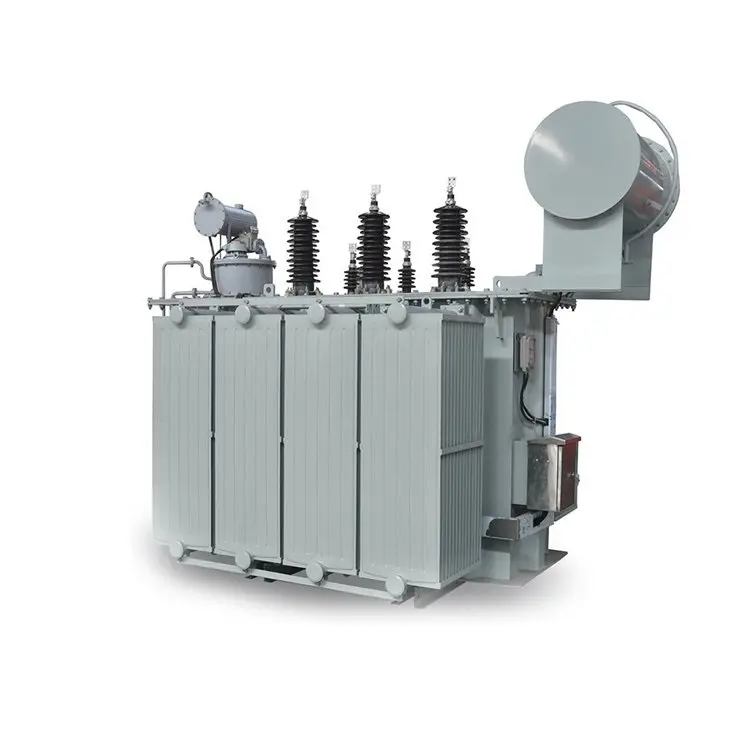

1. Understanding a 15000 KVA Oil Immersed Self Cooled Transformer

Industrial power systems require transformers that can handle substantial electrical loads while maintaining stable voltage and acceptable operating temperatures. A 15000 KVA oil immersed self cooled transformer is a high-capacity power transformer rated at 15,000 kilovolt-amperes, equivalent to 15 MVA.

The rated capacity indicates the apparent power that the transformer is designed to deliver under its specified operating conditions. It does not directly represent active power in kilowatts because the actual active power depends on the load power factor.

For example, at a power factor of 0.90, a fully loaded 15 MVA transformer corresponds to approximately 13.5 MW of active power. This calculation is illustrative; the actual permissible loading depends on the transformer's rating, temperature limits, and operating conditions.

What Does Oil Immersed and Self Cooled Mean?

In an oil immersed transformer, the magnetic core and windings are housed in a tank containing insulating liquid. The liquid provides electrical insulation and transfers heat away from internal components. In a self-cooled design, heat is dissipated primarily through natural circulation of the liquid and natural air movement around the cooling surfaces.

For conventional oil-filled power transformers, the designation ONAN means Oil Natural Air Natural. This describes natural oil circulation inside the transformer and natural air cooling outside it. However, buyers should confirm the manufacturer's actual cooling designation and nameplate rather than assuming that every self-cooled design has identical construction.

2. How Does Oil Immersed Self Cooling Work?

Transformer losses generate heat whenever electrical energy passes through the windings and magnetic core. If this heat cannot be removed effectively, insulation ages more rapidly and the risk of premature equipment failure increases.

An oil immersed self-cooled transformer manages this heat through a natural thermal process.

1. Heat generation: Winding resistance produces load-related losses, while the energized core produces no-load losses.
2. Heat transfer to insulating liquid: The oil or specified insulating liquid absorbs heat from the core and windings.
3. Natural liquid circulation: Heated liquid becomes less dense and rises, while cooler liquid moves downward to replace it.
4. Heat dissipation: Radiators, cooling panels, or other designed tank surfaces transfer heat into the surrounding air.
5. Natural air movement: Ambient air carries the released heat away, allowing the cooling cycle to continue.

This arrangement can reduce dependence on powered cooling fans and pumps. Nevertheless, natural cooling still depends on clear airflow, suitable ambient temperature, correctly sized cooling surfaces, and operation within the manufacturer's specified limits.

For a 15 MVA installation, engineering teams should pay particular attention to the cooling system's rated capability at the expected site temperature. A transformer operating in a hot climate or a poorly ventilated enclosure may experience different thermal conditions from an identical unit installed outdoors in a cooler environment.

3. Key Benefits for Industrial Power Systems

High Capacity for Substantial Electrical Loads

A 15 MVA transformer can support large industrial loads, distribution substations, and infrastructure projects when its voltage ratings and electrical characteristics match the system. It can provide a central point for stepping voltage up or down between different parts of a power network.

Passive Cooling Operation

Natural oil and air circulation can simplify the cooling arrangement because the basic heat-transfer process does not require continuously operating cooling fans or oil pumps. This can reduce auxiliary power consumption and eliminate certain fan- or pump-related maintenance tasks.

Established Insulation Technology

Oil immersed transformer technology has a long history of use in power generation, transmission, and industrial distribution. Properly specified insulating liquid provides both dielectric insulation and heat transfer, while the internal insulation system is engineered for the transformer's rated voltage and service conditions.

Adaptability to Different Project Requirements

Depending on the manufacturer's design and the applicable standards, transformers can be specified with different voltage ratios, winding configurations, impedance values, tap-changing arrangements, terminal layouts, monitoring devices, and protective accessories.

These features should be selected according to the project specification rather than treated as standard inclusions in every 15000 KVA transformer.

4. Where Is a 15000 KVA Transformer Commonly Used?

The suitability of a 15 MVA oil immersed self-cooled transformer depends on the electrical system and the manufacturer's declared ratings. Common application areas include:

• Industrial manufacturing: Large production facilities, machinery installations, and industrial distribution networks with significant and sustained power demand.
• Commercial infrastructure: Large complexes and critical facilities where a properly engineered medium- or high-voltage supply is required.
• Utility substations: Voltage transformation within distribution or other network arrangements where the electrical ratings are appropriate.
• Mining and processing: Industrial sites with substantial motors, processing equipment, and demanding operating conditions.
• Energy projects: Selected power generation or energy infrastructure installations where the transformer design matches the connection requirements.

Not every application requires a 15 MVA unit. If the expected demand is substantially lower, a smaller transformer may offer better economics. If the load regularly exceeds the available rating, a different capacity or a properly engineered parallel-transformer arrangement may be necessary.

Engineers should also evaluate motor starting currents, nonlinear loads, harmonics, load fluctuations, redundancy requirements, and future expansion. These factors can affect transformer selection even when the calculated average demand appears acceptable.

5. How to Select the Right 15000 KVA Transformer

Purchasing a high-capacity transformer involves more than comparing quotations. A structured technical review helps prevent mismatched equipment, unexpected installation costs, and avoidable commissioning delays.

Step 1: Define Primary and Secondary Voltages

Identify the incoming and outgoing system voltages, frequency, grounding arrangements, and connection requirements. Confirm that the transformer's voltage ratio and insulation levels are suitable for the network.

Step 2: Assess the Real Load Profile

Collect maximum demand, typical demand, load growth forecasts, motor starting requirements, and any significant harmonic-producing equipment. A load study helps determine whether the rated capacity provides an appropriate operating margin.

Step 3: Confirm Cooling Performance

Check whether the requested self-cooled rating is available at the specified ambient temperature and installation altitude. Request clarification about cooling design, permissible temperature rise, and any applicable derating requirements.

Step 4: Evaluate Impedance and Fault Levels

Transformer impedance influences voltage regulation and the short-circuit current contributed by the transformer. Confirm that the proposed impedance is compatible with the system study, downstream equipment ratings, and utility requirements.

Step 5: Specify Tap-Changing Requirements

Determine whether off-circuit taps are sufficient or whether on-load voltage regulation is needed. The decision depends on network voltage variation, operating strategy, maintenance capability, and the transformer's available design options.

Step 6: Review Protection and Monitoring

Discuss the required protection scheme, temperature monitoring, pressure-related devices, oil-level indication, surge protection, and other accessories with the manufacturer and project engineer. The final arrangement should reflect the transformer design and the installation's risk assessment.

Step 7: Compare Complete Technical Offers

Review guaranteed losses, impedance, noise, dimensions, total mass, oil quantity, accessories, testing, documentation, delivery terms, and warranty conditions. A lower initial quotation may not represent the best overall value if it excludes essential project requirements.

6. Important Technical Specifications to Confirm

The following table is a procurement checklist, not a verified datasheet for a specific SYHF transformer. Exact values must be confirmed against the manufacturer's technical proposal, nameplate, and approved drawings.

Depending on the project, applicable IEC or IEEE standards may be specified. The purchaser should identify the required standard and edition in the inquiry documents rather than assuming that every quotation follows the same technical basis.

7. Installation and Site Planning for Long-Term Reliability

Even a well-designed transformer can underperform when site preparation and installation are inadequate. For a 15 MVA unit, transport planning, foundation design, electrical clearances, and cooling access should be addressed before delivery.

Foundation and Access

Confirm the total operating mass, transport dimensions, lifting points, and foundation loading requirements from approved drawings. Ensure that cranes, transport vehicles, and the final installation route can safely accommodate the equipment.

Ventilation and Cooling Clearance

Radiators and other cooling surfaces must have sufficient clearance for natural air circulation. Avoid positioning the transformer where walls, temporary storage, or other equipment obstruct airflow. Indoor installations require an appropriately engineered ventilation arrangement.

Electrical Safety and Grounding

Provide suitable earthing, protective devices, cable terminations, clearances, and access controls in accordance with the project design and local regulations. The protection and grounding arrangement should be reviewed by qualified electrical professionals.

Oil Containment and Environmental Protection

Where required, provide oil containment, drainage control, spill response provisions, and fire protection measures suitable for the installation. Requirements vary according to the insulating liquid, transformer construction, site location, and applicable regulations.

Pre-Energization Checks

Before energization, verify installation records, nameplate data, connections, tap position, grounding, protective-device settings, and required test results. Follow the manufacturer's commissioning procedure and obtain authorization from qualified personnel.

8. Maintenance Practices That Help Prevent Unexpected Downtime

Preventive maintenance helps identify developing faults before they cause an unplanned outage. The inspection frequency and test methods should follow the manufacturer's instructions, operating history, applicable standards, and site risk assessment.

Routine Visual Inspections

• Check for oil leakage, unusual surface corrosion, damaged seals, and loose external components.
• Inspect oil-level indicators, temperature indicators, and other installed monitoring devices.
• Look for blocked radiators, accumulated dirt, restricted airflow, or abnormal cooling-surface conditions.
• Listen for changes in operating sound and investigate unusual vibration or noise.
• Review alarms, load trends, and operating temperatures for unexplained changes.

Insulating Liquid and Electrical Tests

Where appropriate to the transformer design and maintenance plan, periodic oil testing can help evaluate dielectric strength, moisture, acidity, and other relevant characteristics. Dissolved gas analysis may provide additional diagnostic information about developing internal electrical or thermal faults.

Electrical tests such as winding resistance, insulation-related measurements, turns-ratio testing, and other diagnostic procedures should be selected by qualified personnel according to the equipment condition and maintenance objective. Not every test is necessary at every inspection interval.

Recognizing Warning Signs

Never bypass protective devices simply to keep a transformer running. Serious alarms, suspected internal faults, or abnormal operating conditions require action under the site's approved safety and operating procedures.

9. How Efficiency Affects the Total Cost of Ownership

The purchase price is only one component of the cost of operating a 15000 KVA oil immersed self-cooled transformer. Electricity losses, maintenance, downtime, installation, and end-of-life handling can significantly influence its overall economic performance.

Transformer losses generally include no-load losses and load losses. No-load losses occur whenever the transformer is energized, even with little or no load. Load losses increase with current and are commonly evaluated at a specified reference temperature and rated conditions.

For a simplified operating-cost estimate, annual energy loss can be expressed as:

Equivalent full-load hours account for the variation in load over time. For a changing load, a more accurate calculation uses the load-loss relationship over the actual operating profile. Since load losses are approximately proportional to the square of current within the relevant operating range, running at half load does not generally produce half of the rated load losses.

To compare two transformer proposals, buyers should use guaranteed loss values, realistic loading assumptions, annual operating hours, and the expected electricity tariff. The resulting energy-cost estimate can be compared with the difference in purchase prices.

Additional considerations include inspection intervals, spare parts, expected availability, maintenance accessibility, cooling-related auxiliary consumption if applicable, and the financial impact of an outage. A transformer with lower evaluated lifecycle cost may be a better investment even if its initial price is higher.

10. Common Purchasing Mistakes to Avoid

Several avoidable errors can complicate procurement or reduce the suitability of a high-capacity transformer.

• Focusing only on the 15 MVA rating: Capacity cannot compensate for an incorrect voltage ratio, unsuitable vector group, or incompatible impedance.
• Ignoring site conditions: High ambient temperatures, altitude, humidity, and restricted airflow can affect operating capability and equipment life.
• Overlooking load characteristics: Large motors, nonlinear loads, frequent load changes, and future expansion may require additional engineering analysis.
• Comparing incomplete quotations: Different offers may use different loss guarantees, accessory packages, testing requirements, or delivery scopes.
• Leaving documentation until late: Missing drawings or unclear interface requirements can delay foundation work, cable planning, and commissioning.
• Neglecting service planning: Maintenance access, spare parts, technical support, and diagnostic procedures should be considered before purchase.

A well-prepared inquiry should include the electrical single-line diagram where available, rated capacity, voltage levels, frequency, cooling requirements, applicable standards, site conditions, required accessories, testing scope, delivery destination, and expected schedule.

The more complete the inquiry, the easier it is for the supplier to identify technical gaps and prepare a proposal that can be evaluated on a consistent basis.

11. Frequently Asked Questions

12. Make a Confident Transformer Selection

Selecting a 15000 KVA oil immersed self cooled transformer requires a balanced assessment of electrical performance, thermal capability, site conditions, protection, maintainability, and lifecycle cost. The rated capacity is an essential starting point, but reliable operation depends on matching the complete transformer design to the project's requirements.

By preparing a detailed technical specification, evaluating guaranteed performance data, planning the installation carefully, and establishing an appropriate maintenance program, buyers can make more informed decisions and reduce avoidable operational risks.

SYHF can be a starting point for discussing your transformer project requirements. Before placing an order, confirm the available product configuration, technical specifications, applicable standards, delivery arrangements, and service scope directly with the supplier.
