Product Description

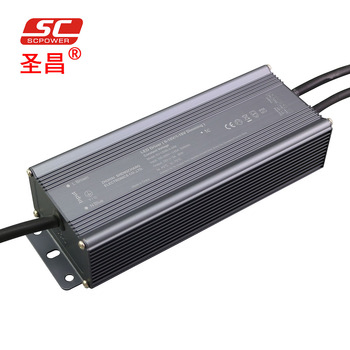

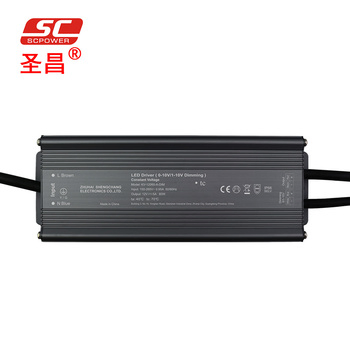

0-10V 10V PWM Dimmable Waterproof SMPS 12V 24V 36V 48V 5 amp Power Supply
Feature
·Output constant voltage
· Universal AC input:100-265VAC
· Built-in active PFC function
· High efficiency up to 87%
· Protections: Short circuit/Over current/Over loading
· Cooling by free air convection
· IP66 design for indoor or outdoor installation
· Class 1 power unit

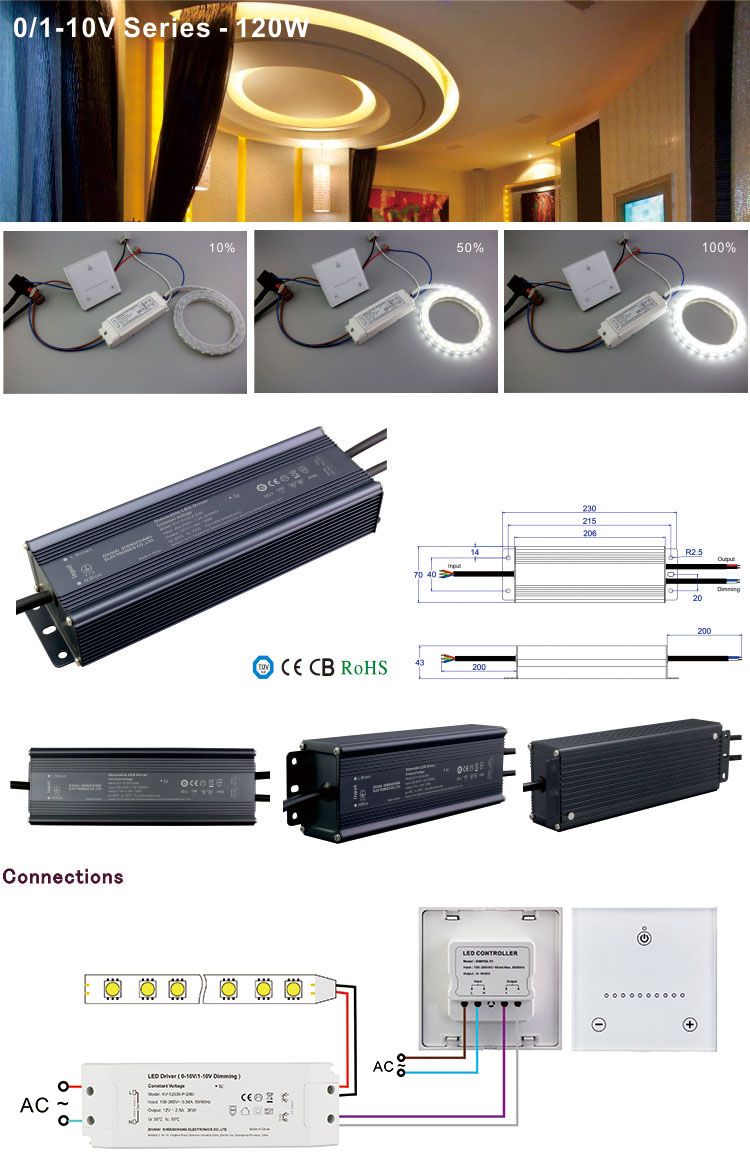

· Three in one dimming function(0/1-10Vdc or PWM signal or resistance)
· Dimming range: 0-100%
· Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·Three years warranty
Specification
Model | KV-12120-A-DIM | KV-24120-A-DIM | KV-36120-A-DIM | KV-48120-A-DIM | |
Output | DC Voltage | 12V | 24V | 36V | 48V |
Voltage Tolerance | ±0.5V | ||||
Rated current | 0~10A | 0~5A | 0~3.3A | 0~2.5A | |
Rated power | 120W | ||||
Input | Voltage Range | 100~265VAC | |||
Frequency Range | 47~63HZ | ||||
Power Factor |
| ||||
Efficiency(Typ.) | 83% | 86% | 87% | 87% | |
AC Current(Max.) | 1.28A | 1.23A | 12.2A | 12.2A | |
Leakage current | <0.5mA | ||||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |||
Over Loading | ≤120% | ||||
Over Current | ≤1.2*Iout | ||||
Over temperature | 100ºC±10ºC, Shut down o/p voltage, recovers automatically after temp. goes down.
| ||||
Others | Net. Weight | 1.3Kg | |||
Size | 230*70*47mm(L*W*H) | ||||
packing | 329*279*176mm/10pcs /CTN | ||||
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºC of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | ||||
